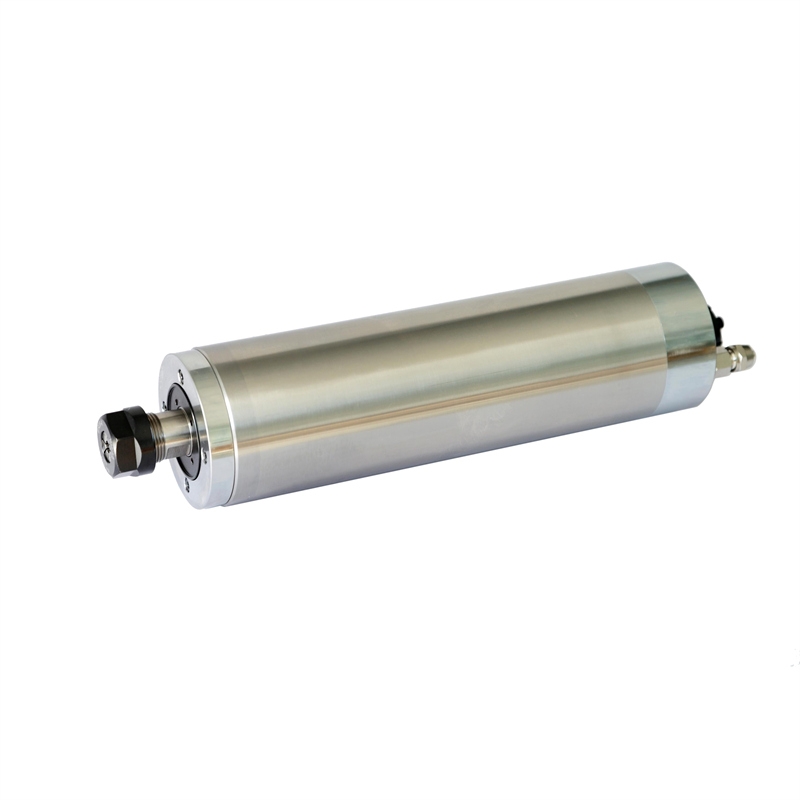

GWD85 85mm 2.2KW ER20 24000RPM MTC water cooling high speed electric spindle
| Model |
GWD85 |
|
| Rated power(Kw) |
2.2 |
|
| Rated current(A) |
8.4/4.8 |
|
| Rated voltage(V) |
220/380 |
|
| Rated frequency(Hz) |
300 |
|
| Rated torque(Nm) |
1.2 |
|
| Maximum frequency(Hz) |
400 |
|
| Maximum rpm(rpm) |
24000 |
|
| Pole No. |
2 |
|
| Tool change |
Manual |
|
| Nose |
ER20 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
10.8 |
|

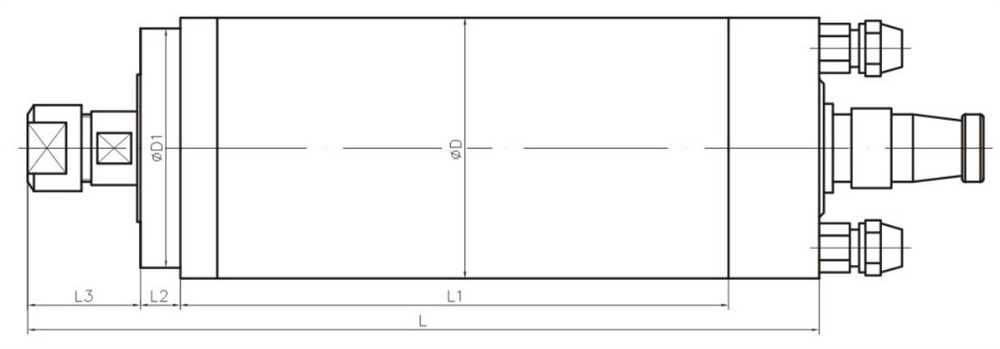

| Size（mm） |
D |
85 |
| D1 |
78 |
|
| L |
339 |
|
| L1 |
259 |
|
| L2 |
12 |
|
| L3 |
38 |
|
