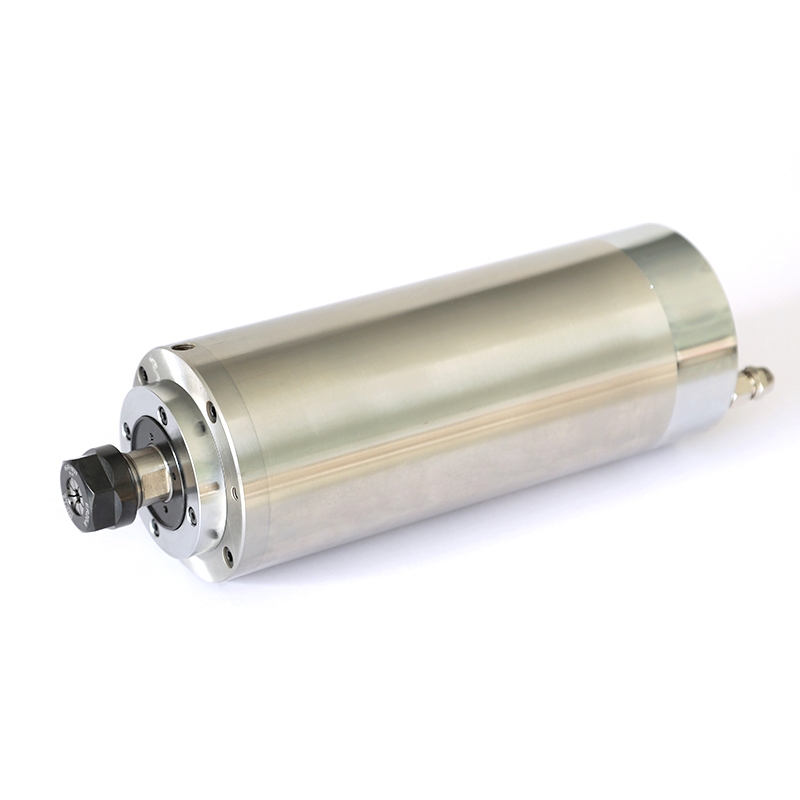

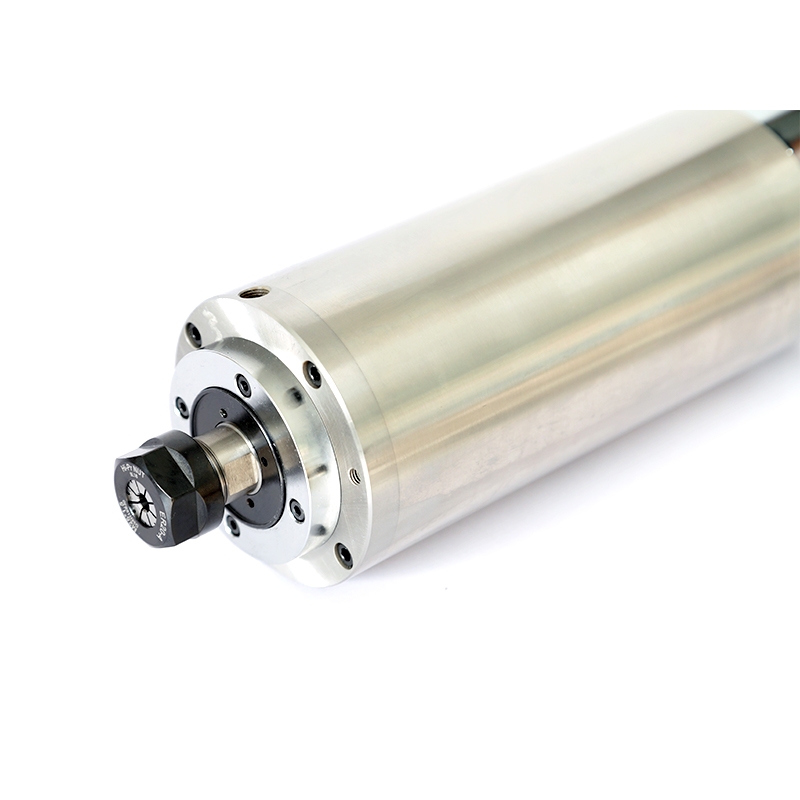

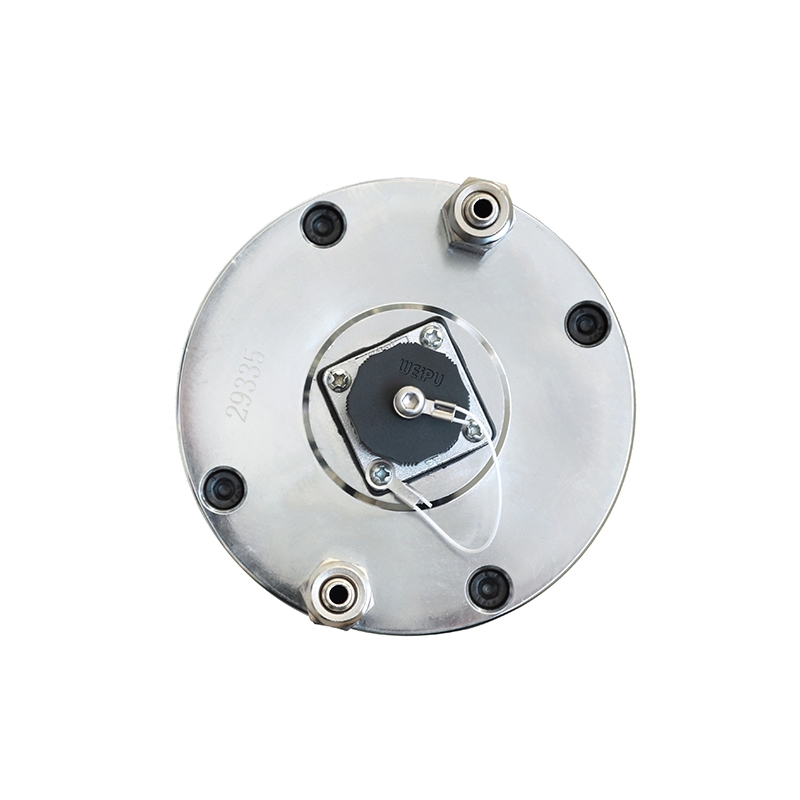

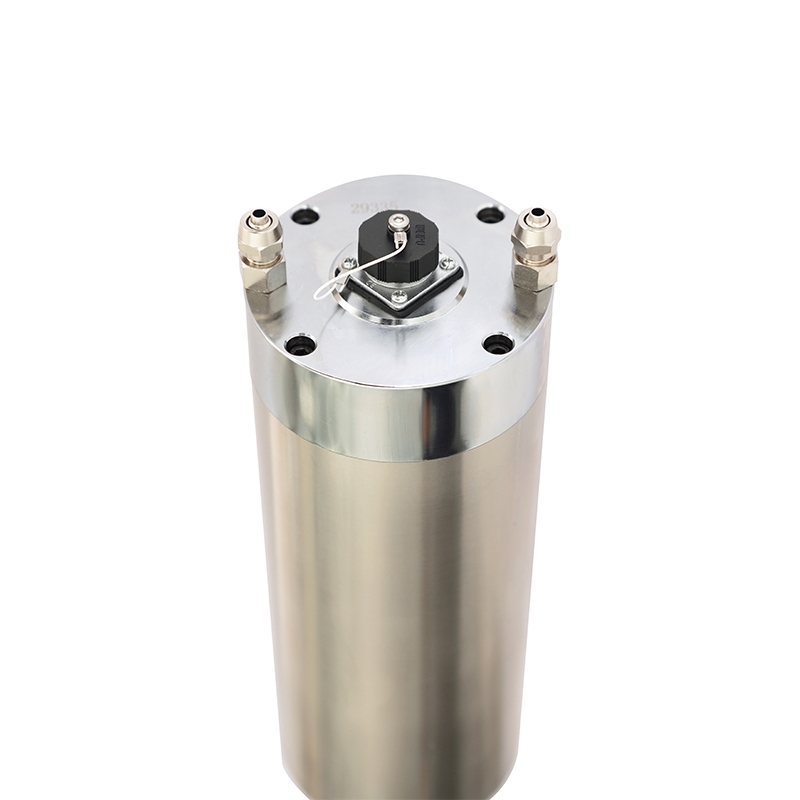

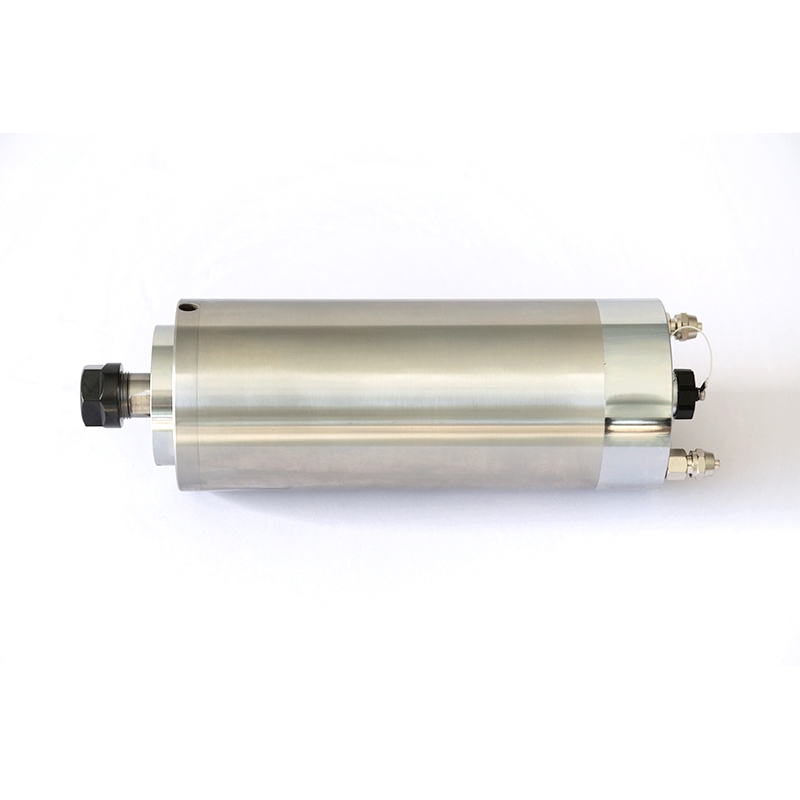

GWD100 2.2KW/3.2KW ER20 24000RPM MTC water cooling high speed electric spindle
| Model |
GWD100 |
|
| Rated power(Kw) |
2.2/3.2 |
|
| Rated current(A) |
4.8/6.8 |
|
| Rated voltage(V) |
380 |
|
| Rated frequency(Hz) |
250/300 |
|
| Rated torque(Nm) |
1.4/1.7 |
|
| Maximum frequency(Hz) |
400 |
|
| Maximum rpm(rpm) |
24000 |
|
| Pole No. |
2 |
|
| Tool change |
Manual |
|
| Nose |
ER20 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
12.0 |
|

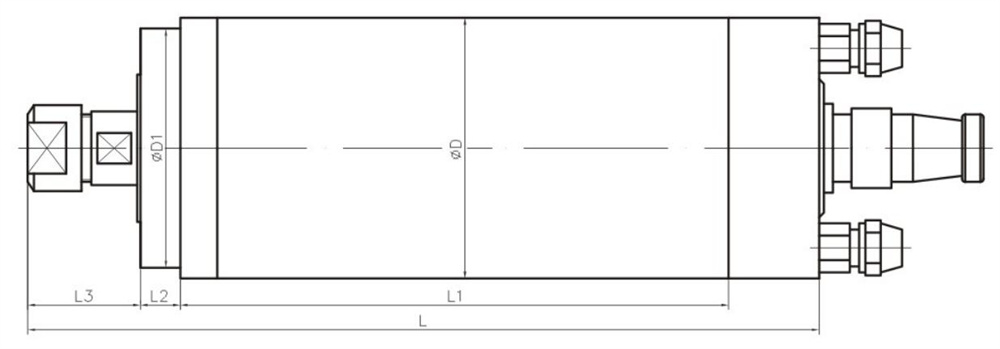

| Size（mm） |
D |
100 |
| D1 |
73 |
|
| L |
299 |
|
| L1 |
214 |
|
| L2 |
12 |
|
| L3 |
38 |
|
