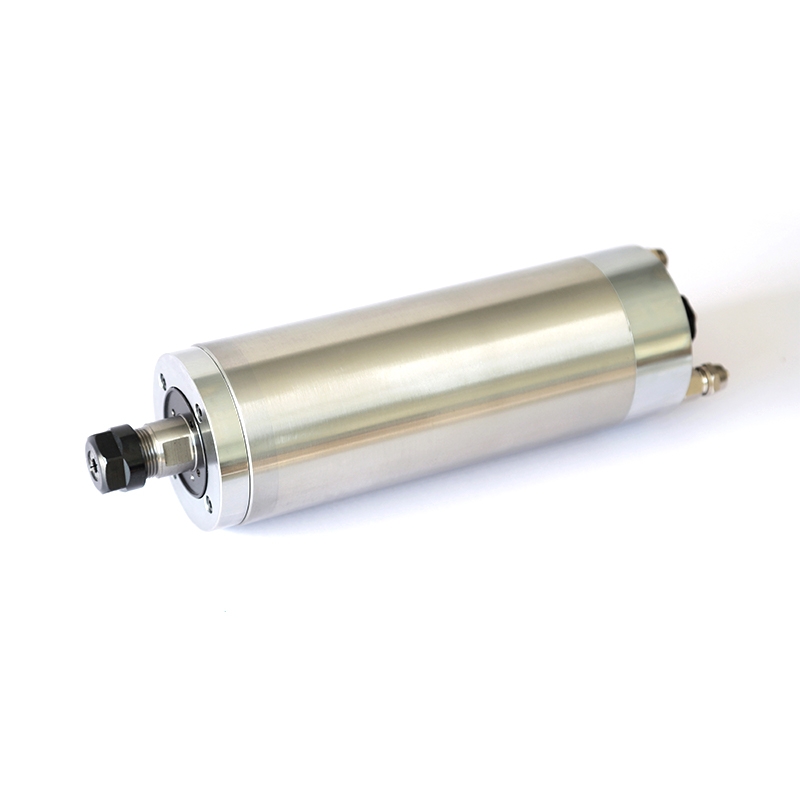

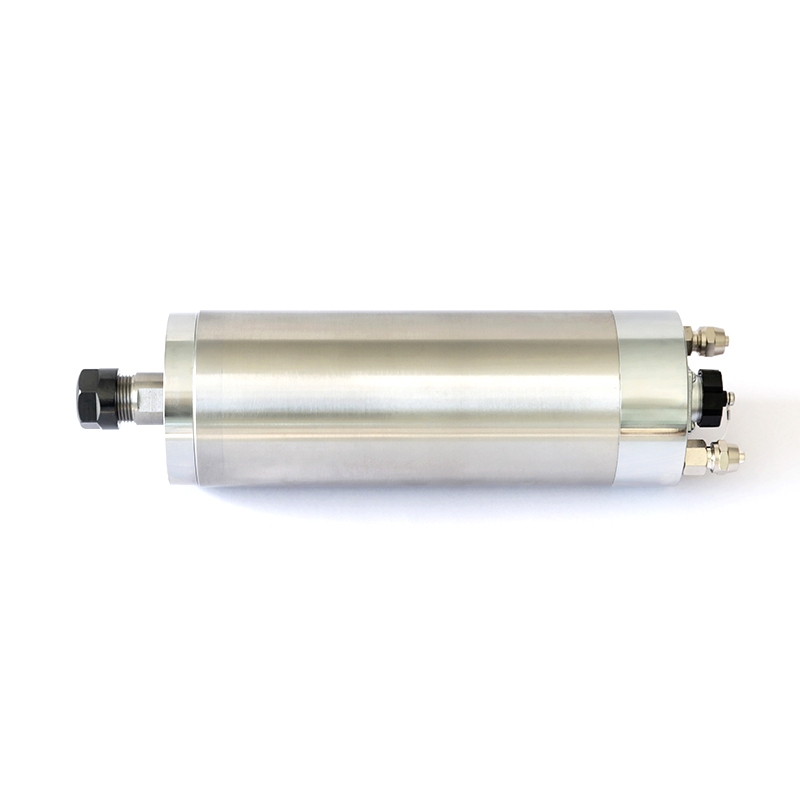

GWD80A 80mm 1.5KW ER16 24000RPM MTC water cooling high speed electric spindle
| Model |
GWD80A |
|
| Rated power(Kw) |
1.5 |
|
| Rated current(A) |
5.9 |
|
| Rated voltage(V) |
220 |
|
| Rated frequency(Hz) |
400 |
|
| Rated torque(Nm) |
0.6 |
|
| Maximum frequency(Hz) |
400 |
|
| Maximum rpm(rpm) |
24000 |
|
| Pole No. |
2 |
|
| Tool change |
Manual |
|
| Nose |
ER16 |
|
| Bearing layout |
Front 2 rear 1 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or wate |
|
| Weight(Kg) |
7.0/8.0 |
|

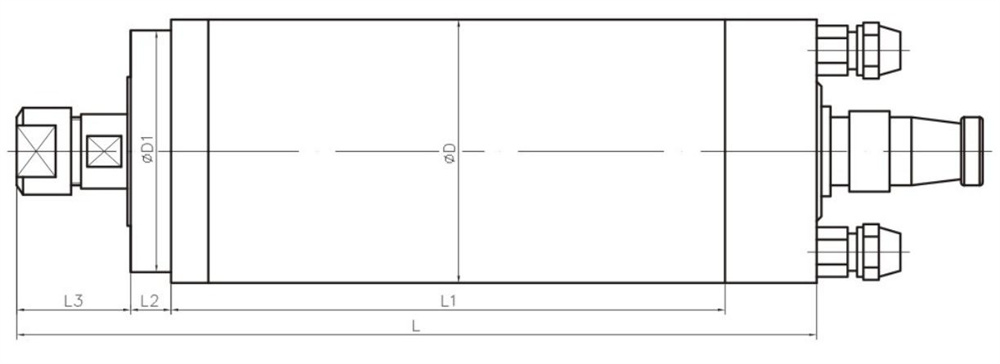

| Size（mm） |
D |
80/85 |
| D1 |
78 |
|
| L |
266 |
|
| L1 |
185 |
|
| L2 |
13 |
|
| L3 |
38 |
|
