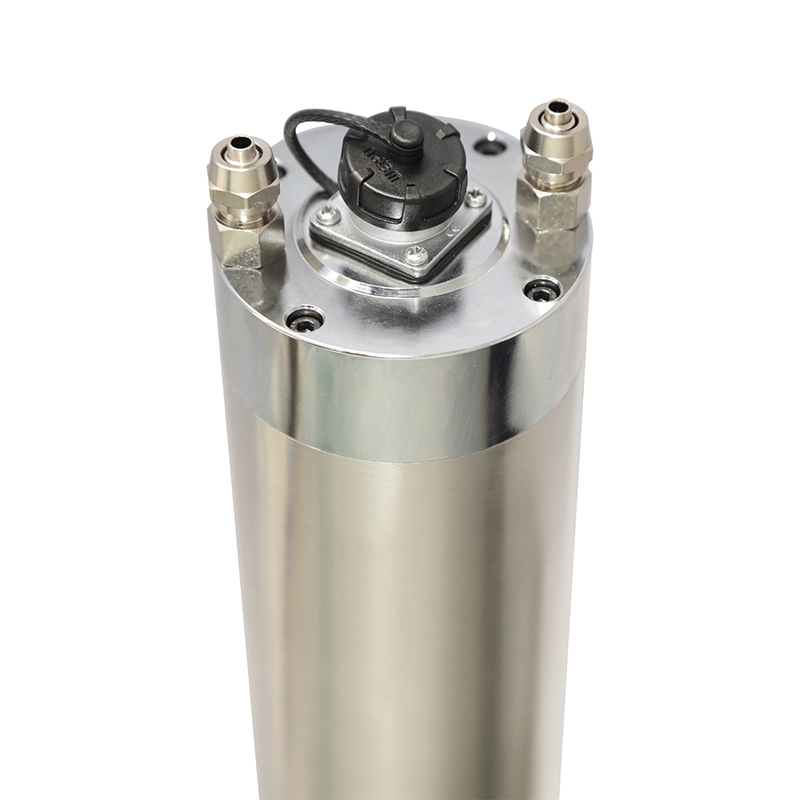

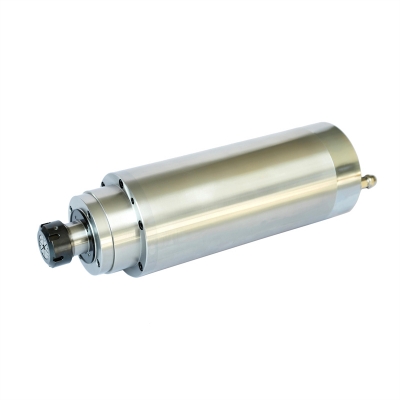

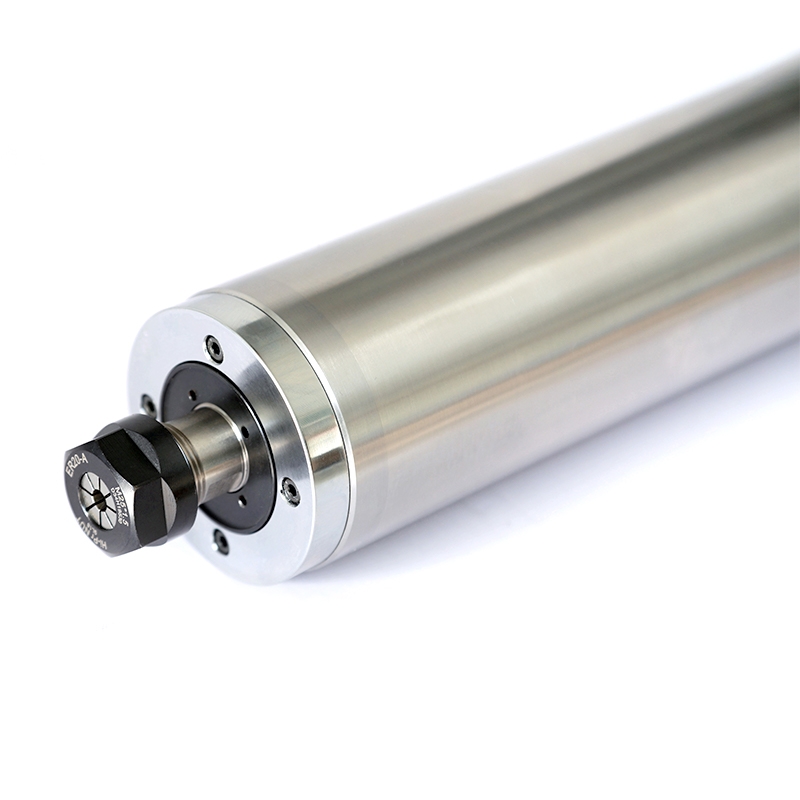

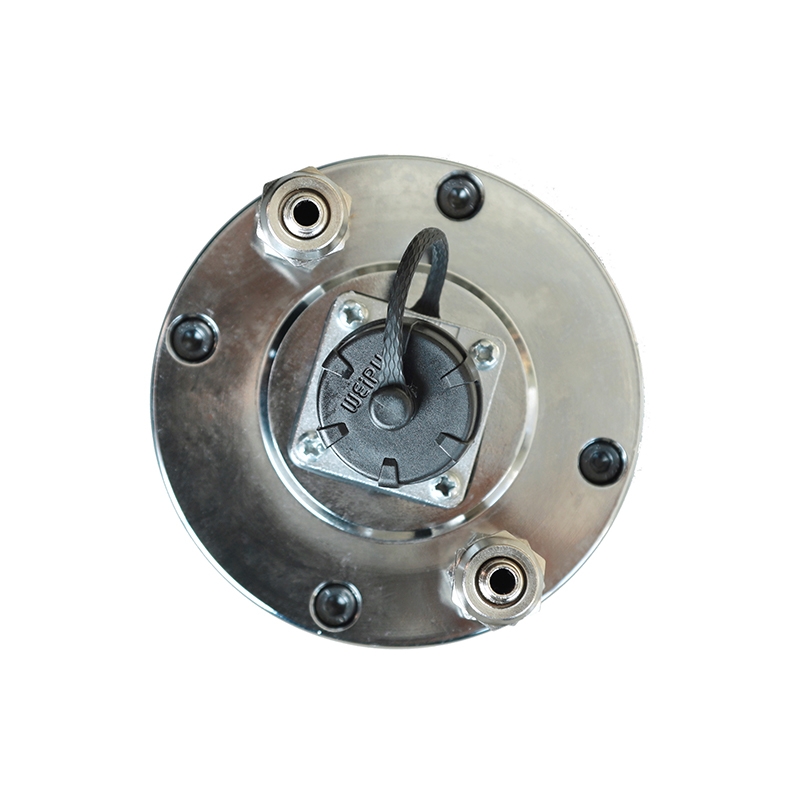

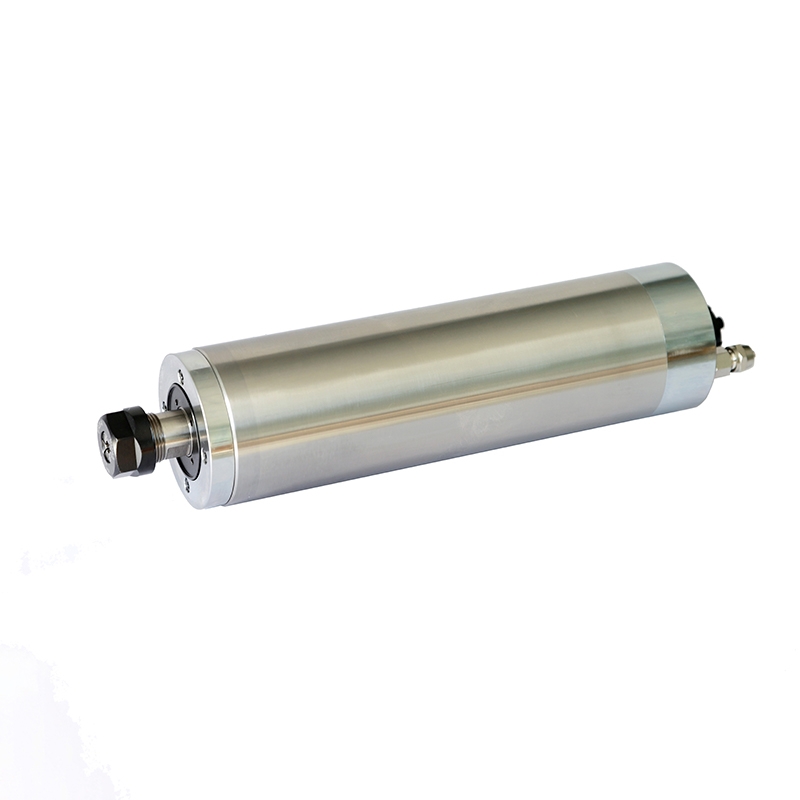

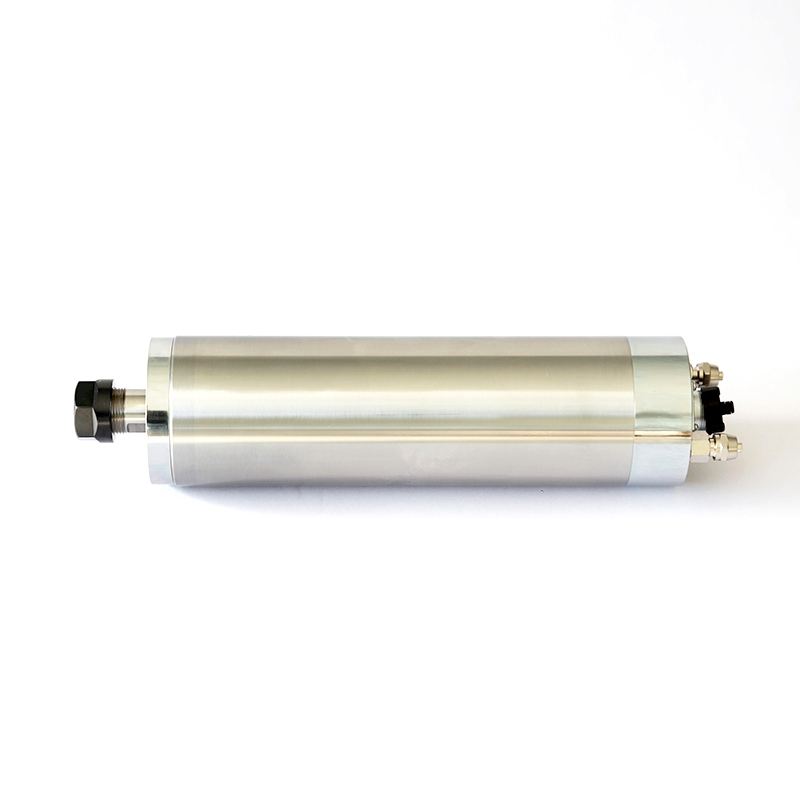

GWD80B 80mm 2.2KW ER20 24000RPM MTC water cooling electric spindle
| Model |
GWD80B |
|
| Rated power(Kw) |
2.2 |
|
| Rated current(A) |
8.9/5.1 |
|
| Rated voltage(V) |
220/380 |
|
| Rated frequency(Hz) |
800 |
|
| Rated torque(Nm) |
0.9 |
|
| Maximum frequency(Hz) |
800 |
|
| Maximum rpm(rpm) |
24000 |
|
| Pole No. |
4 |
|
| Tool change |
Manual |
|
| Nose |
ER20 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
8.8 |
|

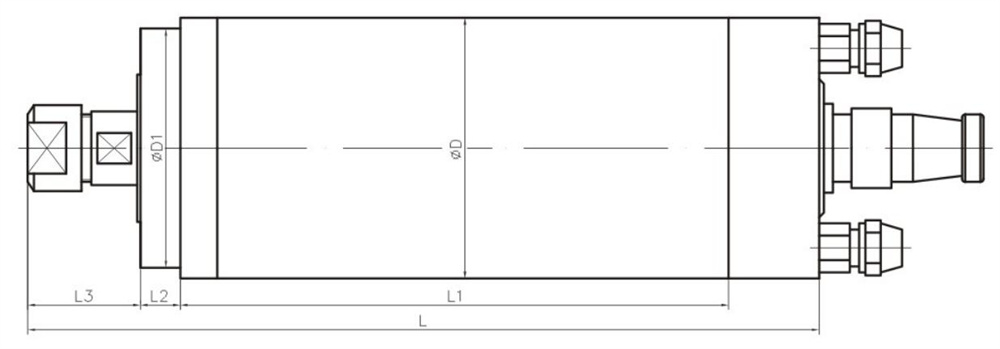

| Size（mm） |
D |
80 |
| D1 |
78 |
|
| L |
318 |
|
| L1 |
238 |
|
| L2 |
12 |
|
| L3 |
38 |
|
