GWD125C 125mm 5.5KW ER32 24000RPM MTC water cooling high speed electric spindle
| Model |
GWD125C |
|
| Rated power(Kw) |
5.5 |
|
| Rated current(A) |
11.8 |
|
| Rated voltage(V) |
380 |
|
| Rated frequency(Hz) |
400 |
|
| Rated torque(Nm) |
4.4 |
|
| Maximum frequency(Hz) |
800 |
|
| Maximum rpm(rpm) |
24000 |
|
| Pole No. |
4 |
|
| Tool change |
Manual |
|
| Nose |
ER32 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
24.0/22.0 |
|

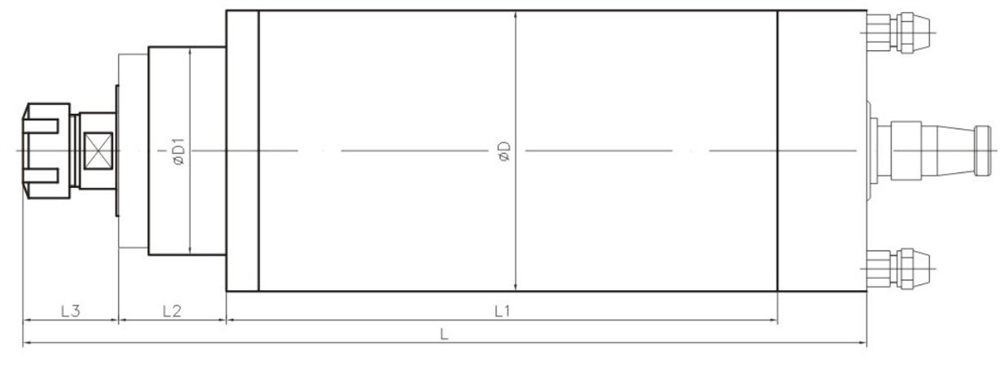

| Size（mm） |
D |
125/120 |
| D1 |
98 |
|
| L |
398 |
|
| L1 |
268 |
|
| L2 |
46 |
|
| L3 |
46 | |
