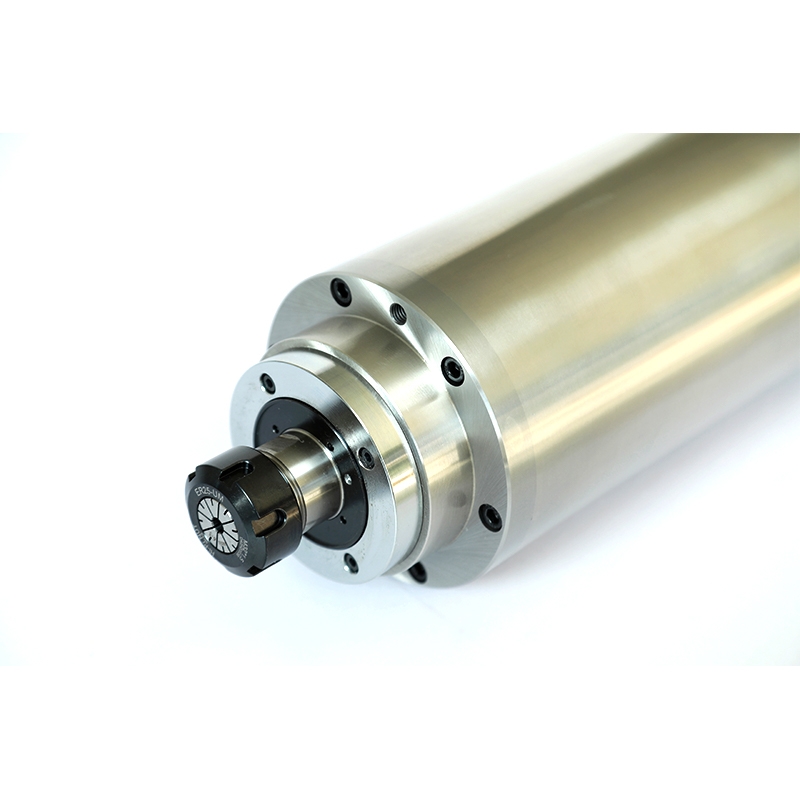

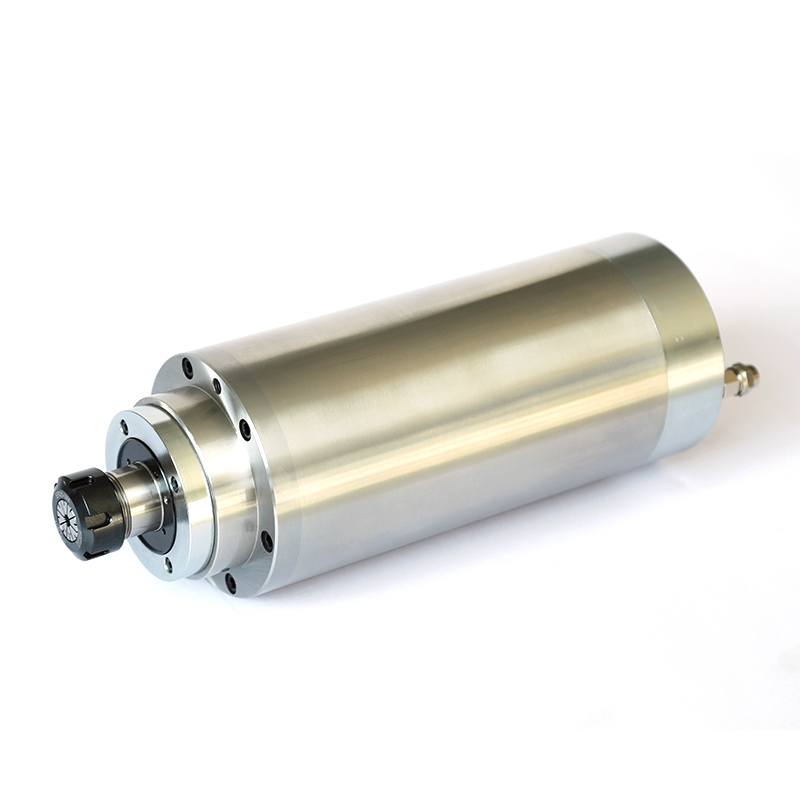

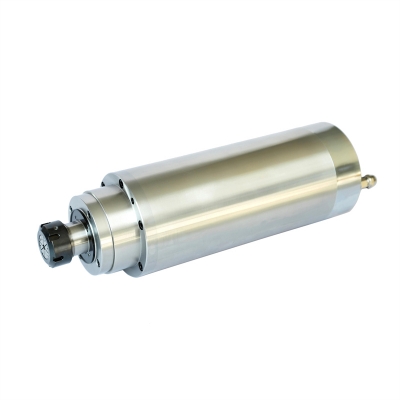

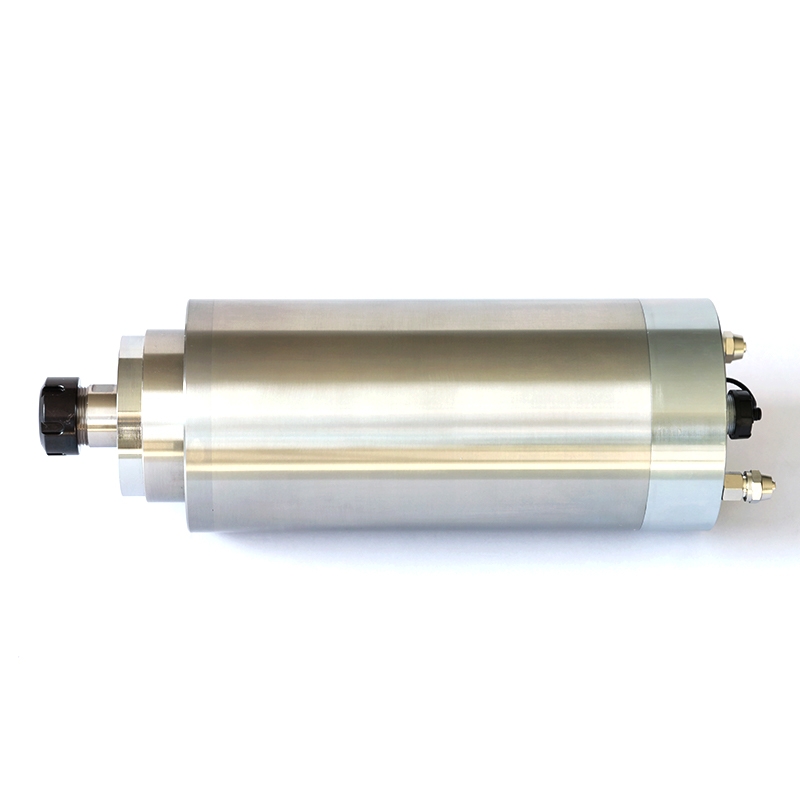

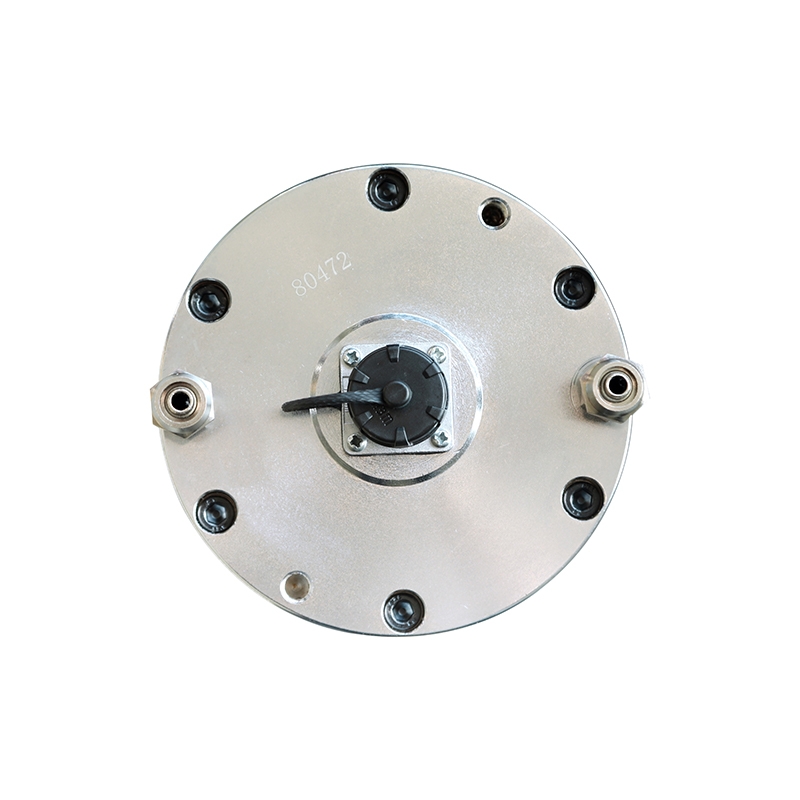

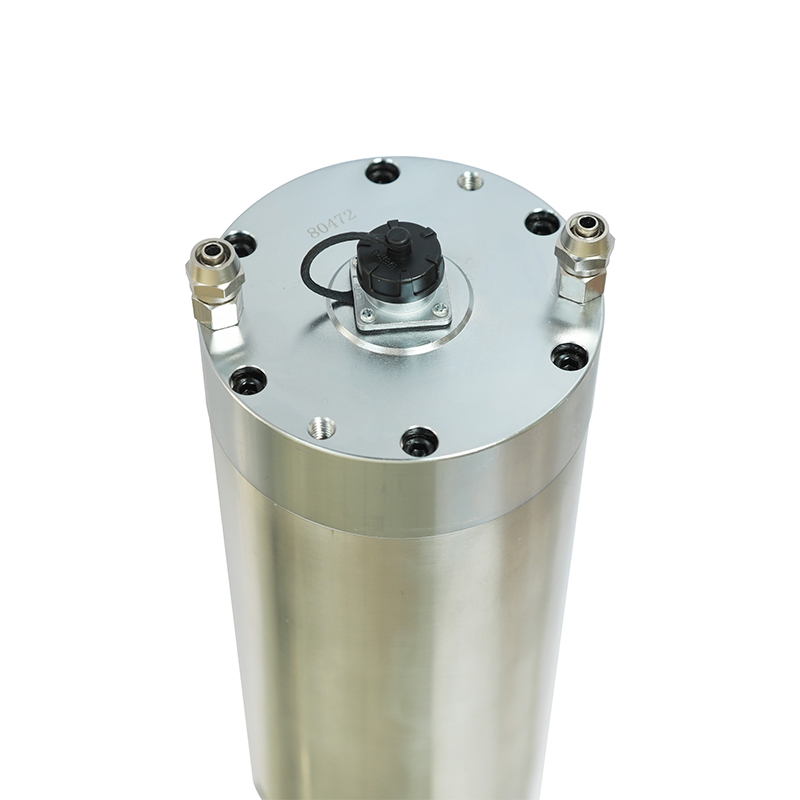

GWD125A 125mm 4.0KW/5.5KW ER25 24000RPM MTC water cooling high speed electric spindle
| Model |
GWD125A |
|
| Rated power(Kw) |
4.0/5.5 |
|
| Rated current(A) |
8.8/11.8 |
|
| Rated voltage(V) |
380 |
|
| Rated frequency(Hz) |
200/275 |
|
| Rated torque(Nm) |
3.2 |
|
| Maximum frequency(Hz) |
400 |
|
| Maximum rpm(rpm) |
24000 |
|
| Pole No. |
2 |
|
| Tool change |
Manual |
|
| Nose |
ER25 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
20.5/22.0 |
|

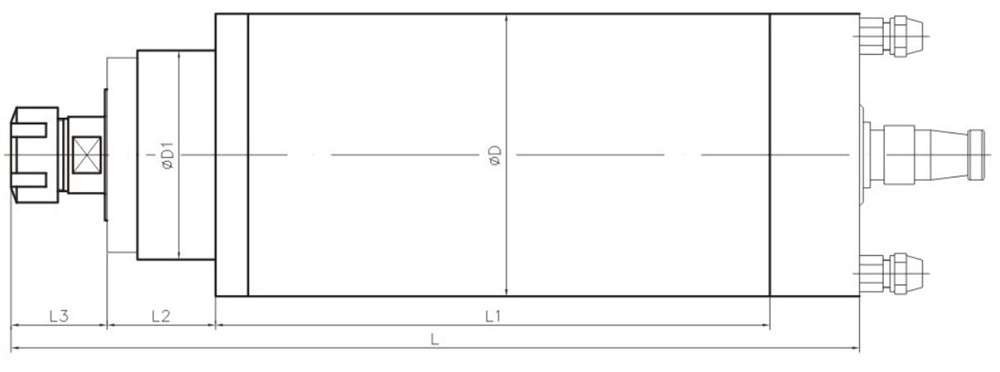

| Size（mm） |
D |
120/125 |
| D1 |
92.5 |
|
| L |
357 |
|
| L1 |
239 |
|
| L2 |
35 |
|
| L3 |
43 |
|
