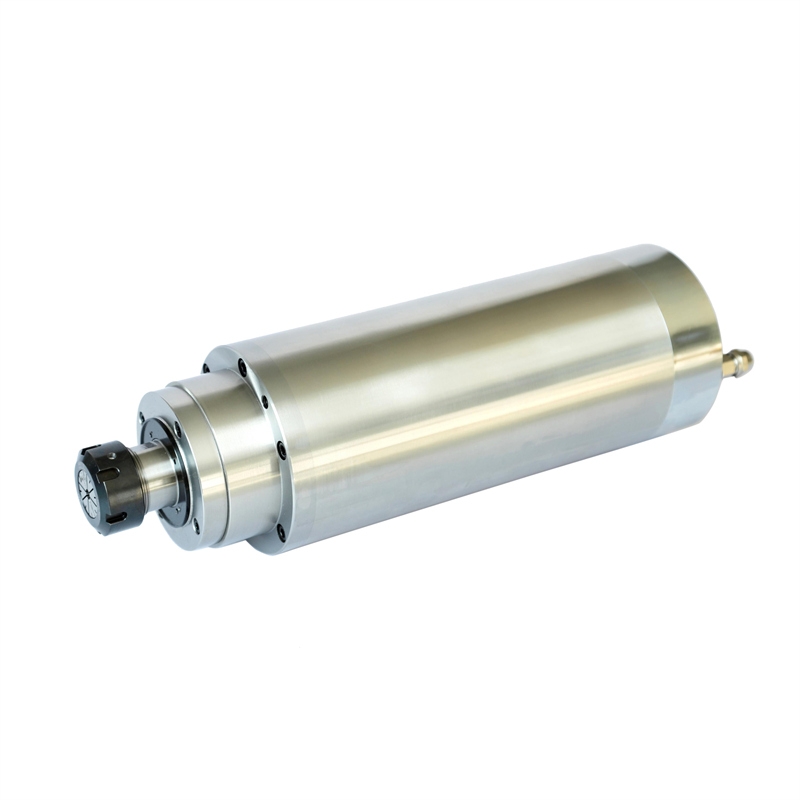

GWD140B 140mm 5.5KW/7.5KW ER32 18000RPM MTC water cooling high speed pole six electric spindle
| Model |
GWD140B |
|
| Rated power(Kw) |
5.5/7.5 |
|
| Rated current(A) |
11.8/15.6 |
|
| Rated voltage(V) |
380 |
|
| Rated frequency(Hz) |
350/450 |
|
| Rated torque(Nm) |
7.5/8.0 |
|
| Maximum frequency(Hz) |
900 |
|
| Maximum rpm(rpm) |
18000 |
|
| Pole No. |
6 |
|
| Tool change |
Manual |
|
| Nose |
ER32 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
37.0 |
|

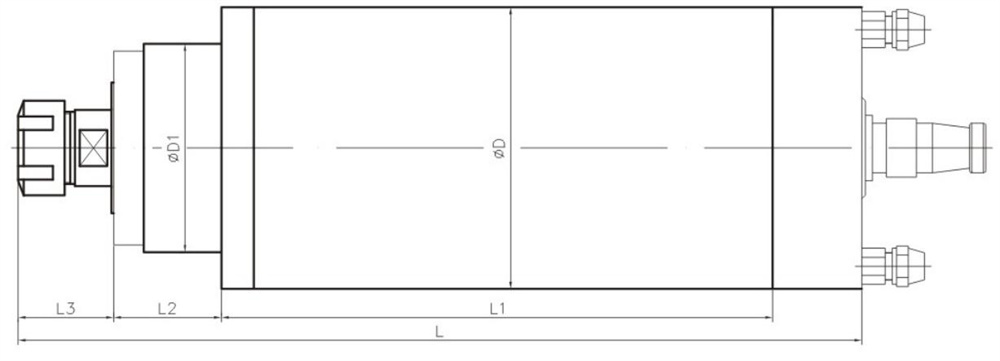

| Size（mm） |
D |
140 |
| D1 |
111 |
|
| L |
449 |
|
| L1 |
298 |
|
| L2 |
62 |
|
| L3 |
50 |
|
