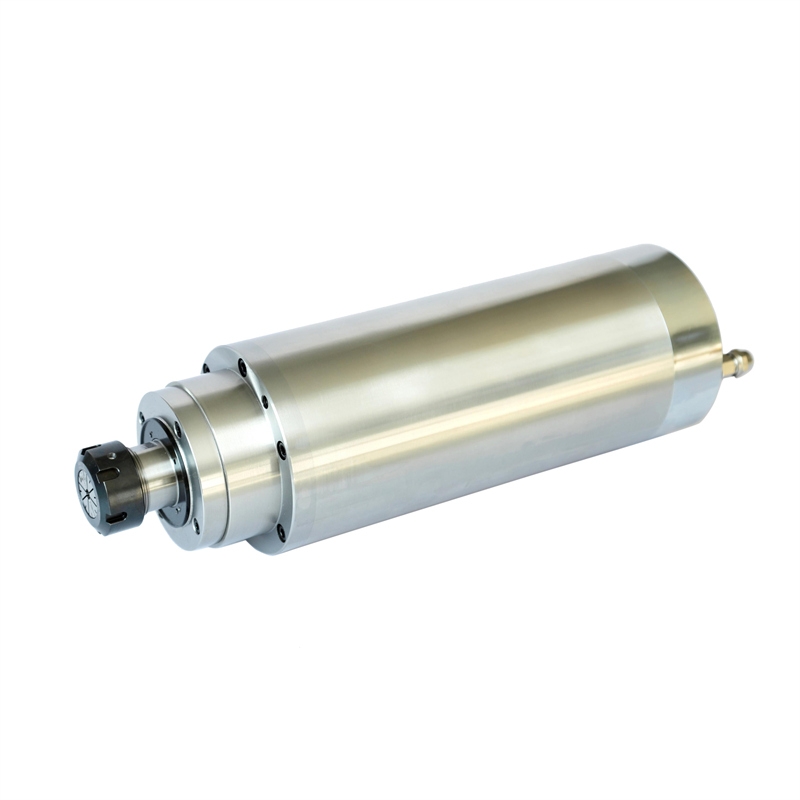

GWD140C 140mm 8KW ER32 18000RPM MTC water cooling high speed electric spindle
| Model |
GWD140C |
|
| Rated power(Kw) |
8.0 |
|
| Rated current(A) |
17.2 |
|
| Rated voltage(V) |
380 |
|
| Rated frequency(Hz) |
300 |
|
| Rated torque(Nm) |
12.7 |
|
| Maximum frequency(Hz) |
900 |
|
| Maximum rpm(rpm) |
18000 |
|
| Pole No. |
6 |
|
| Tool change |
Manual |
|
| Nose |
ER32 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
34.0 |
|

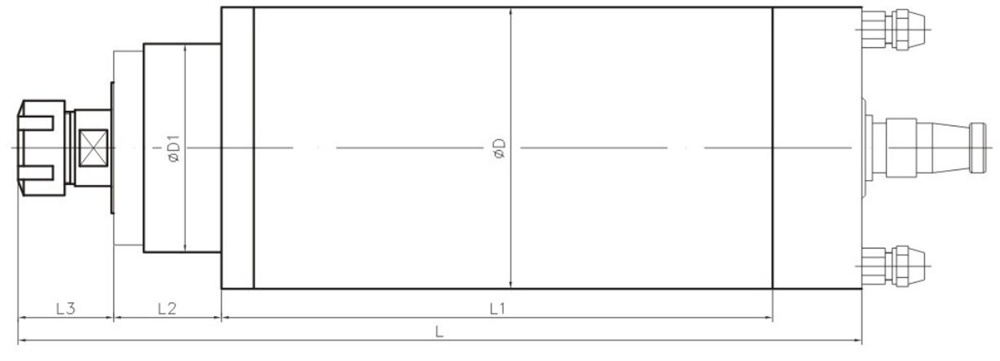

| Size（mm） |
D |
140/150 |
| D1 |
103 |
|
| L |
440 |
|
| L1 |
296 |
|
| L2 |
58 |
|
| L3 |
48 |
|
