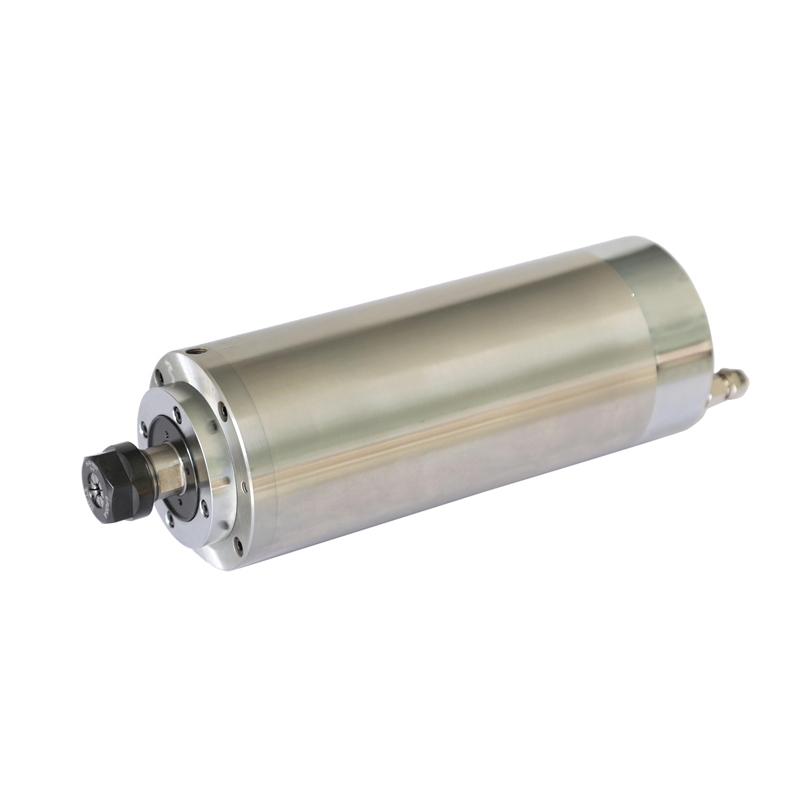

GWD105 105mm 3.2KW ER20 24000RPM MTC water cooling high speed electric spindle
| Model |
GWD105 |
|
| Rated power(Kw) |
3.2 |
|
| Rated current(A) |
6.8 |
|
| Rated voltage(V) |
380 |
|
| Rated frequency(Hz) |
200 |
|
| Rated torque(Nm) |
2.5 |
|
| Maximum frequency(Hz) |
400 |
|
| Maximum rpm(rpm) |
24000 |
|
| Pole No. |
2 |
|
| Tool change |
Manual |
|
| Nose |
ER20 |
|
| Bearing layout |
Front 2 rear 2 |
|
| Lubrication |
Grease |
|
| How to cool |
Internal cool with oil or water |
|
| Weight(Kg) |
15.0/16.5 |
|

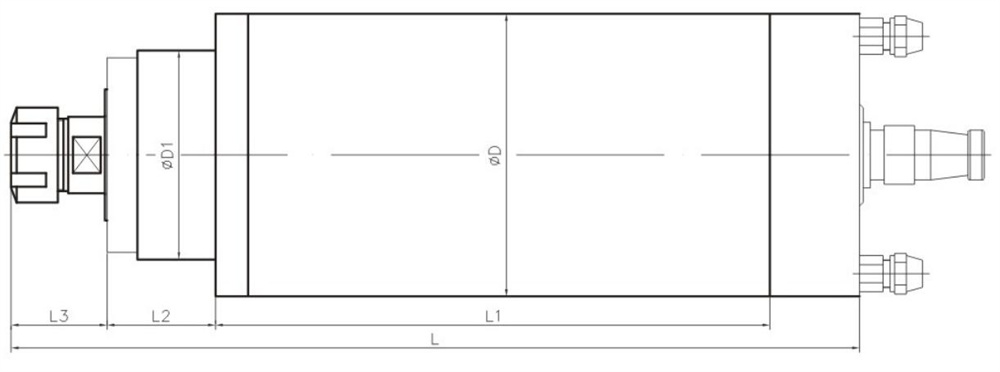

| Size（mm） |
D |
105/110 |
| D1 |
80 |
|
| L |
333 |
|
| L1 |
224 |
|
| L2 |
33 |
|
| L3 |
40 | |
