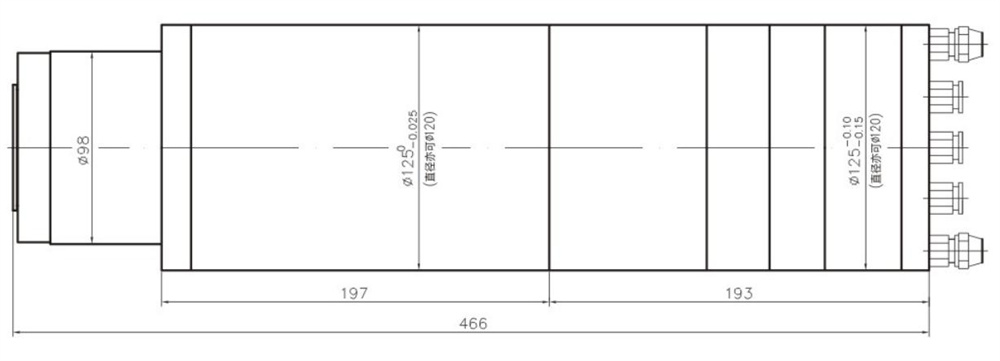

ZHD125A ISO30 ATC 30000rpm water cooling electric spindle

    ZHD125A 4.5KW/5.5KW ISO30 ATC 30000rpm water cooling high speed electric spindle

    Model ZHD125A-4.5 Model ZHD125A-5.5
    Rated power(Kw) 4.5 Rated power(Kw) 5.5
    Rated current(A) 9.8 Rated current(A) 11.8
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz 400 Rated frequency(Hz 500
    Rated torque(Nm) 3.6 Rated torque(Nm) 3.5
    Maximum frequency(Hz) 1000 Maximum frequency(Hz) 1000
    Maximum rpm(rpm) 30000 Maximum rpm(rpm) 30000
    Pole No. 4 Pole No. 4
    Encoder － Encoder －
    Tool change Automatic Tool change Automatic
    Nose BT30/ISO30 Nose BT30/ISO30
    Inner bore(mm) 40 Inner bore(mm) 40
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Studs BT30-45° Studs BT30-45°
    Lubrication Grease Lubrication Grease
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 24 Weight(Kg) 24
