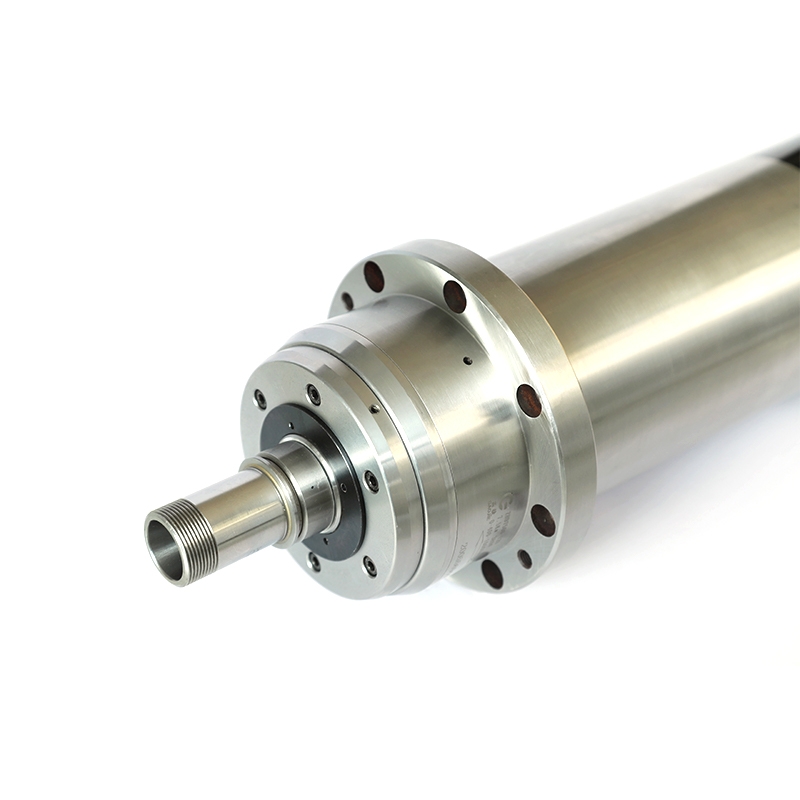

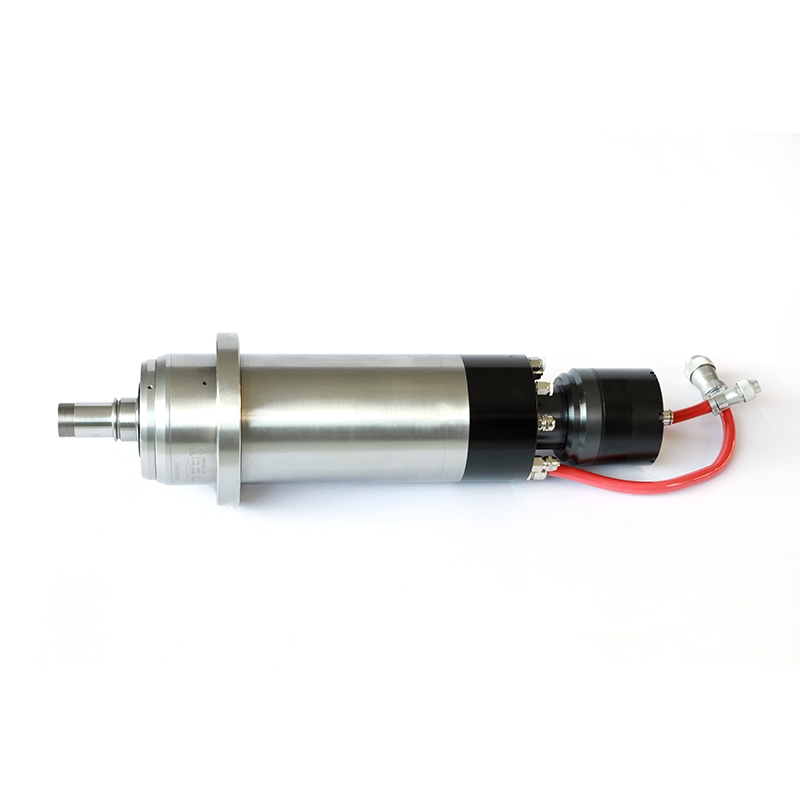

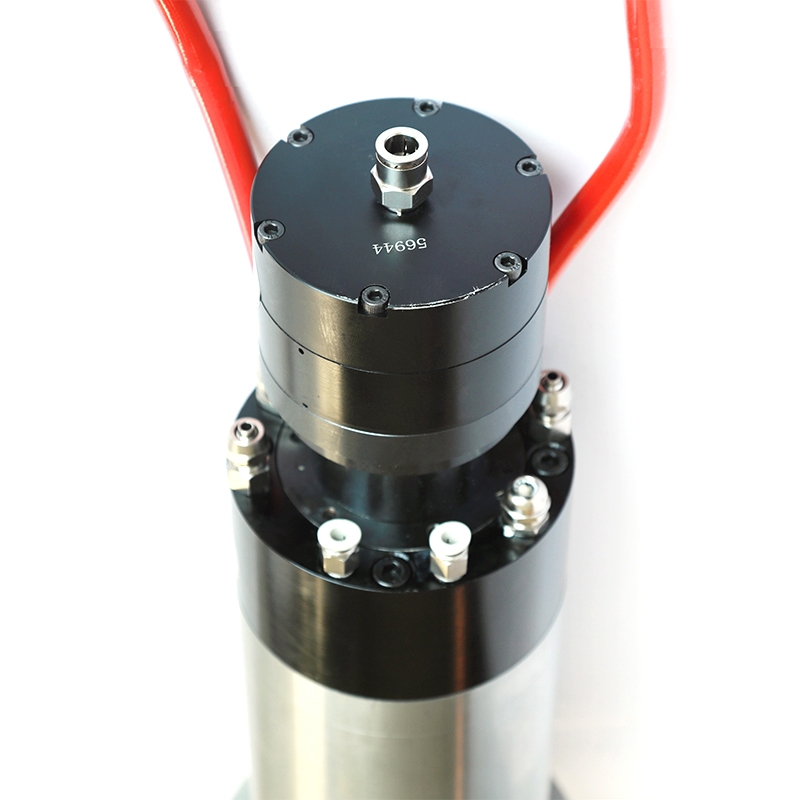

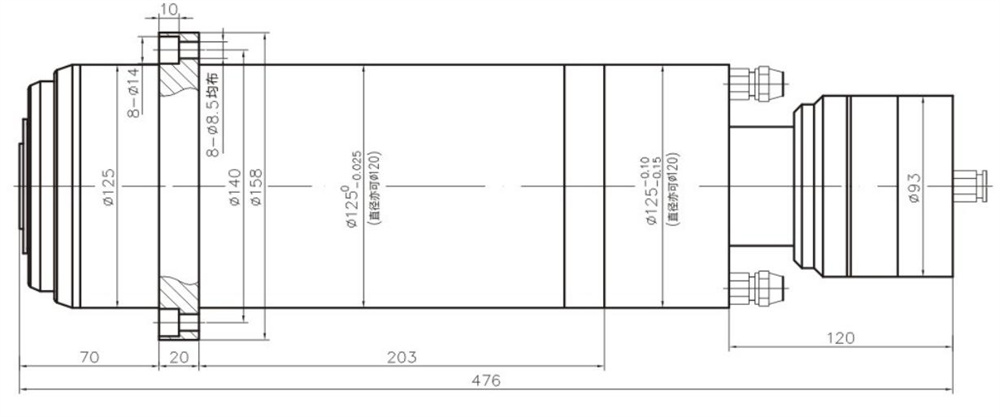

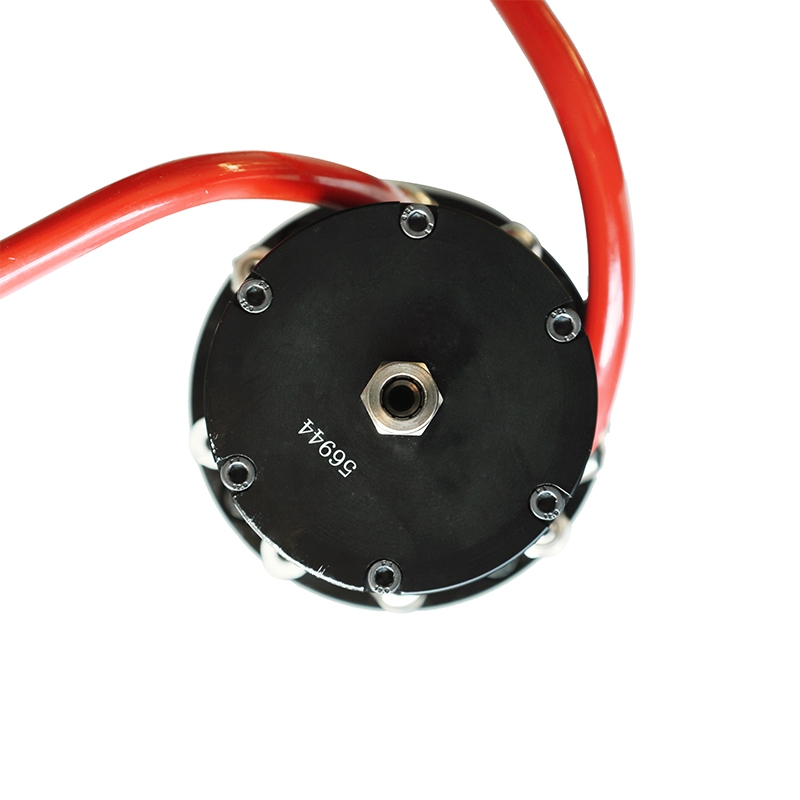

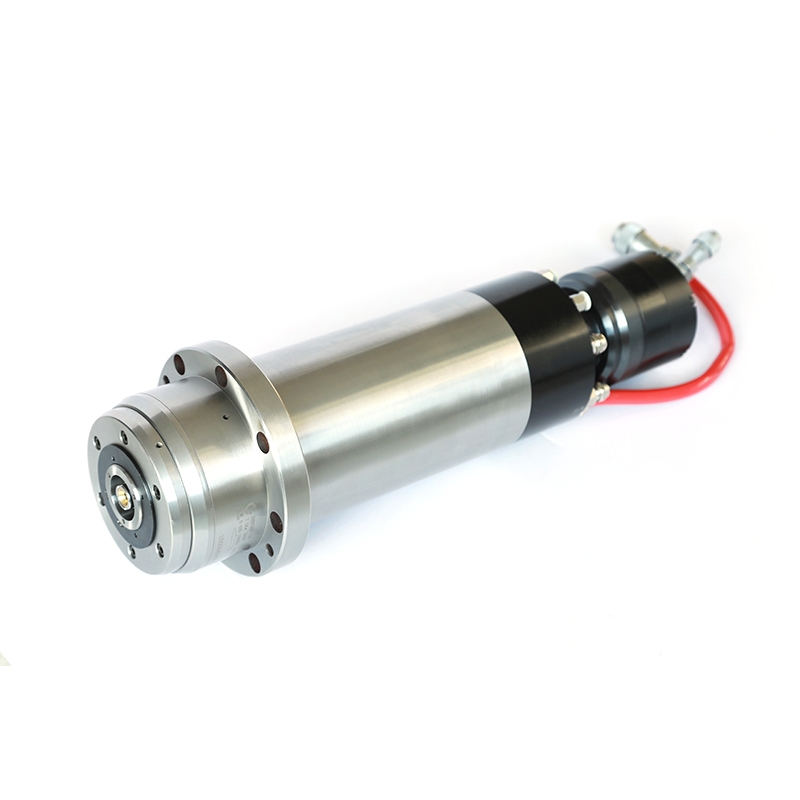

ZHD125D HSK40 ATC water cooling electric spindle

    ZHD125D 5.5kw/7.5kw HSK40 ATC water cooling electric spindle motor
    Model ZHD125D-5.5 Model ZHD125D-7.5
    Rated power(Kw) 5.5 Rated power(Kw) 7.5
    Rated current(A) 11.8 Rated current(A) 15.6
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz 300 Rated frequency(Hz 400
    Rated torque(Nm) 6.0 Rated torque(Nm) 6.0
    Maximum frequency(Hz) 1000 Maximum frequency(Hz) 1000
    Maximum rpm(rpm) 30000 Maximum rpm(rpm) 30000
    Pole No. 4 Pole No. 4
    Encoder Optional Encoder Optional
    Tool change Automatic Tool change Automatic
    Nose HSK40 Nose HSK40
    Inner bore(mm) 45 Inner bore(mm) 45
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Lubrication Grease Lubrication Grease
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 28.5 Weight(Kg) 28.5
