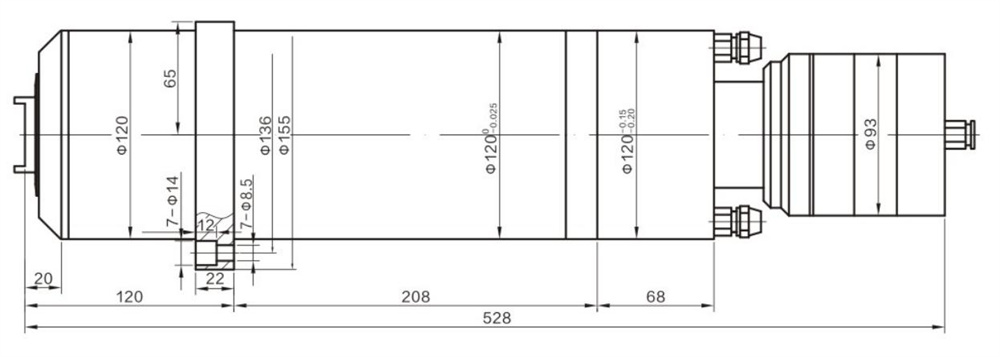

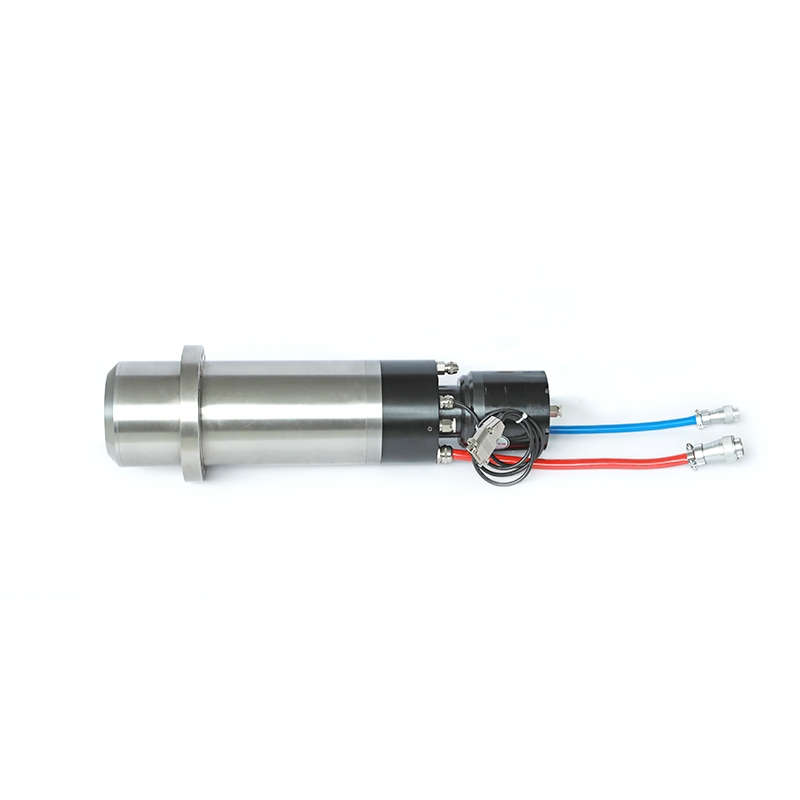

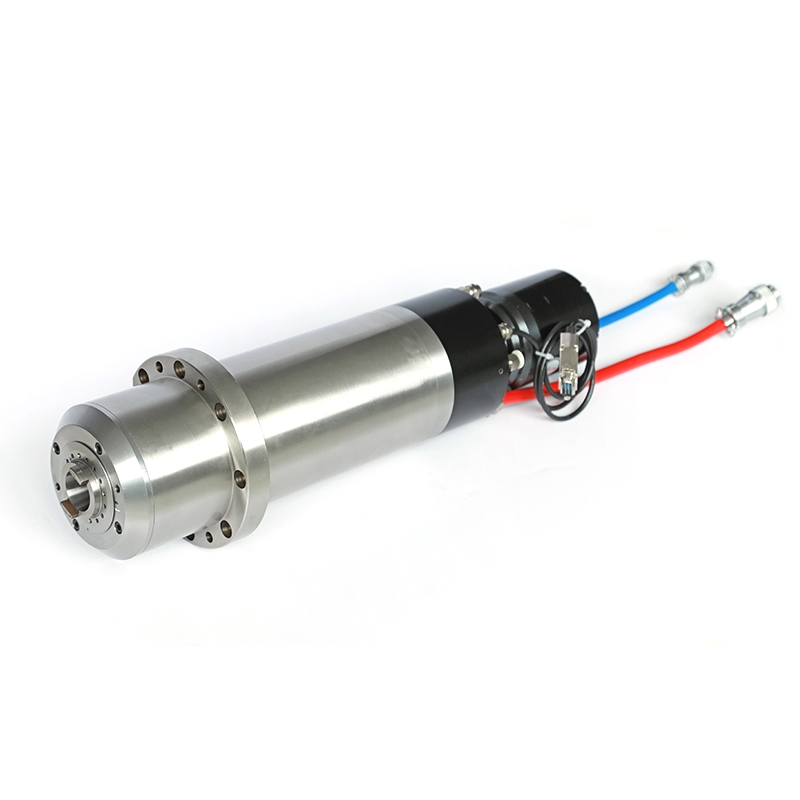

ZHD120 ISO30 ATC 24000rpm water cooling electric spindle

    ZHD120 7.5KW 11KW ISO30 ATC 24000rpm water cooling high speed electric spindle
    Model ZHD120-7.5 Model ZHD120-11.0
    Rated power(Kw) 7.5 Rated power(Kw) 11.0
    Rated current(A) 15.6 Rated current(A) 22.5
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz 300 Rated frequency(Hz 450
    Rated torque(Nm) 8.0 Rated torque(Nm) 8.0
    Maximum frequency(Hz) 800 Maximum frequency(Hz) 800
    Maximum rpm(rpm) 24000 Maximum rpm(rpm) 24000
    Pole No. 4 Pole No. 4
    Encoder Optional Encoder Optional
    Tool change Automatic Tool change Automatic
    Nose BT30/ISO30 Nose BT30/ISO30
    Inner bore(mm) 45 Inner bore(mm) 45
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Studs BT30-45° Studs BT30-45°
    Lubrication Grease Lubrication Grease
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 28 Weight(Kg) 28
