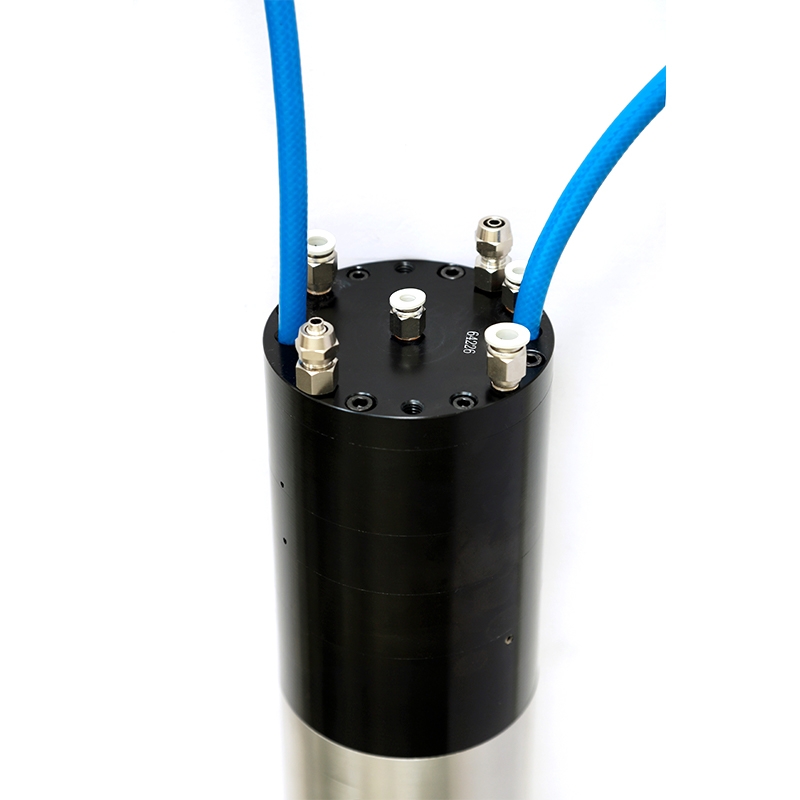

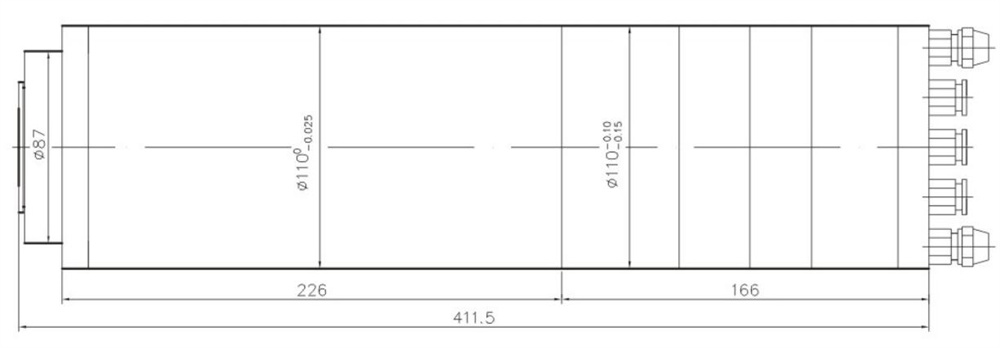

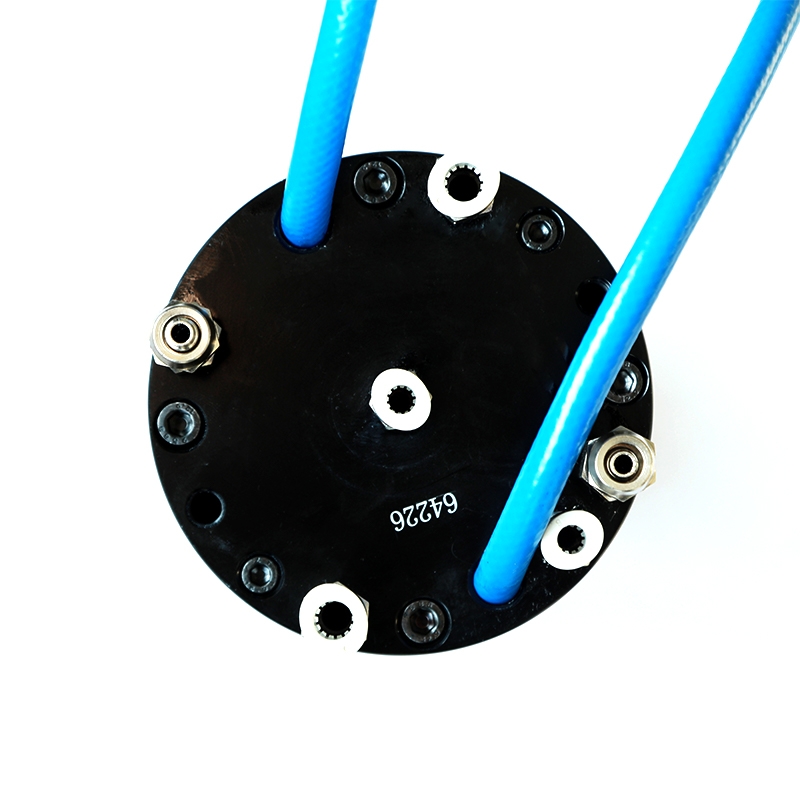

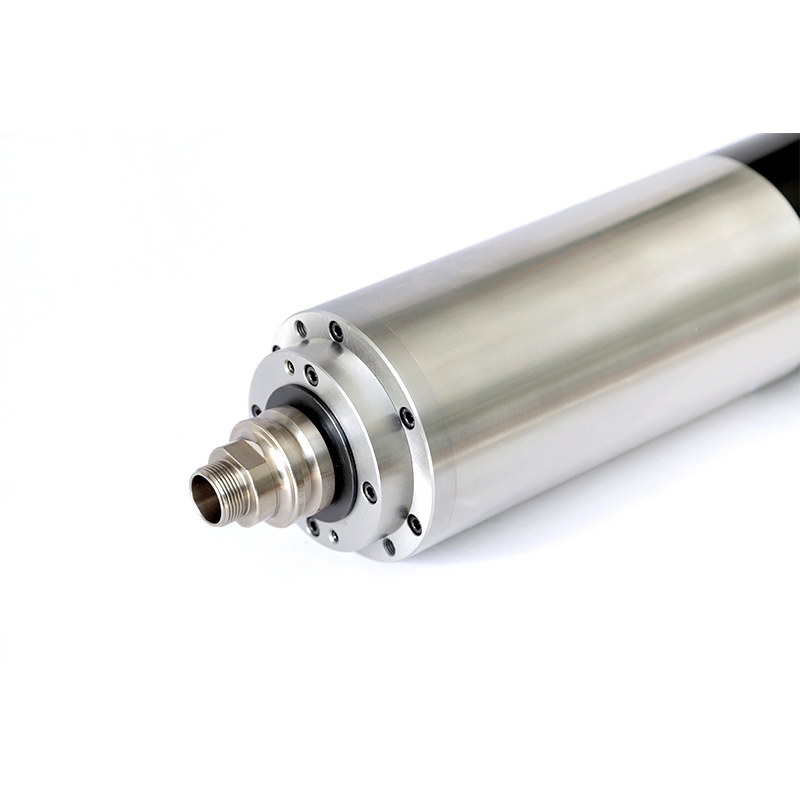

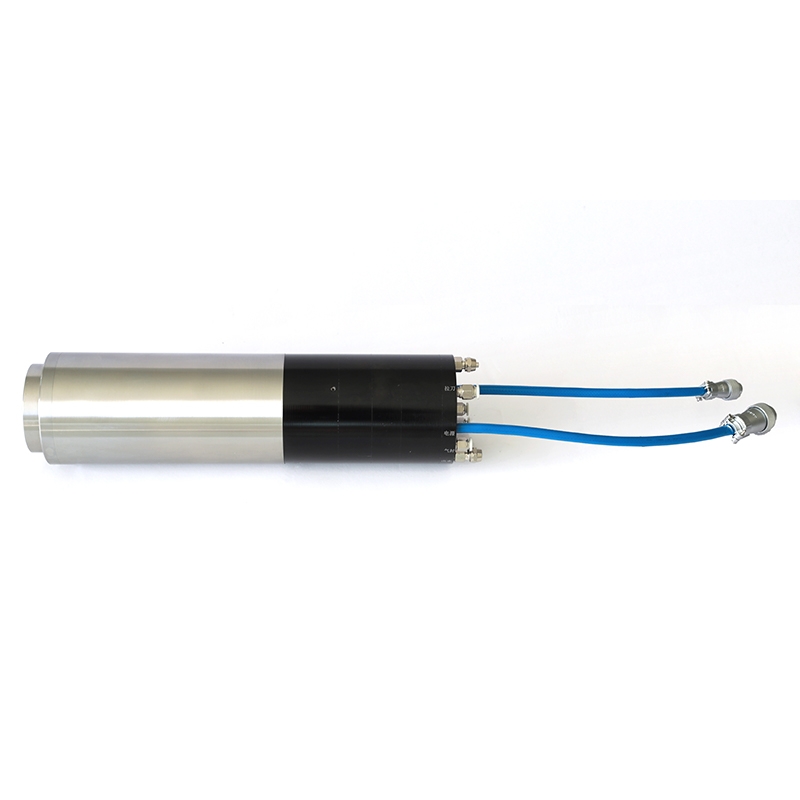

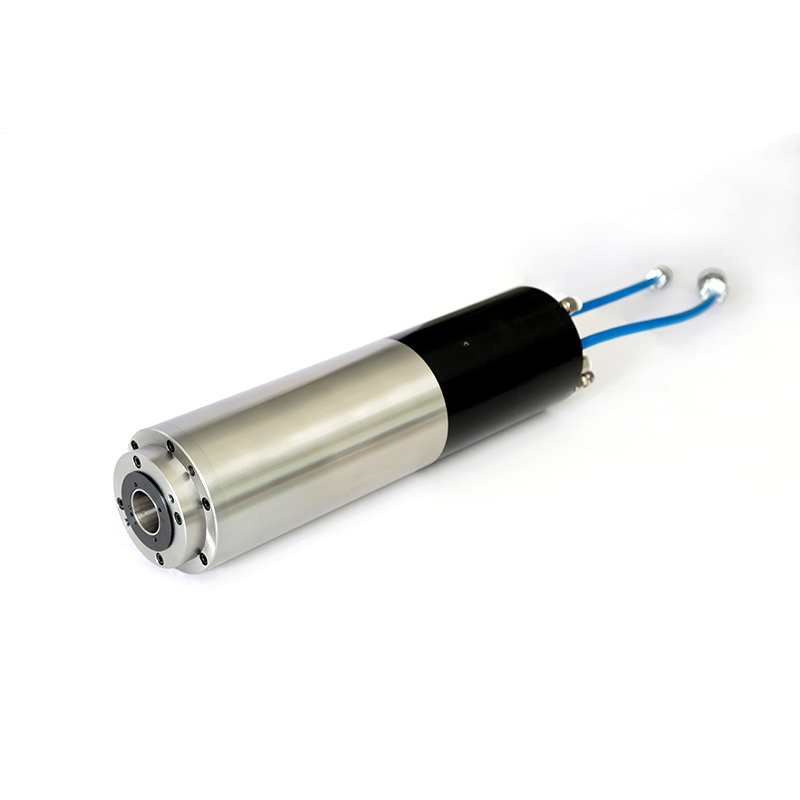

ZHD110 ISO30 ATC 30000rpm water cooling electric spindle

    ZHD110 3.5kw 4.5kw 5.5kw ISO30 ATC 30000rpm water cooling high speed electric spindle
    Model ZHD110-3.5 ZHD110-4.5 ZHD110-5.5
    Rated power(Kw) 3.5 4.5 5.5
    Rated current(A) 7.8 9.8 11.8
    Rated voltage(V) 380 380 380
    Rated frequency(Hz 500 600 800
    Rated torque(Nm) 2.2 2.4 2.2
    Maximum frequency(Hz) 1000 1000 1000
    Maximum rpm(rpm) 30000 30000 30000
    Pole No. 4 4 4
    Encoder － － －
    Tool change Automatic Automatic Automatic
    Nose BT30/ISO30 BT30/ISO30 BT30/ISO30
    Inner bore(mm) 35 35 35
    Bearing layout Front 2 rear 2 Front 2 rear 2 Front 2 rear 2
    Studs BT30-45° BT30-45° BT30-45°
    Lubrication Grease Grease Grease
    How to cool Internal cool with oil or water Internal cool with oil or water Internal cool with oil or water
    Weight(Kg) 18 18 18
