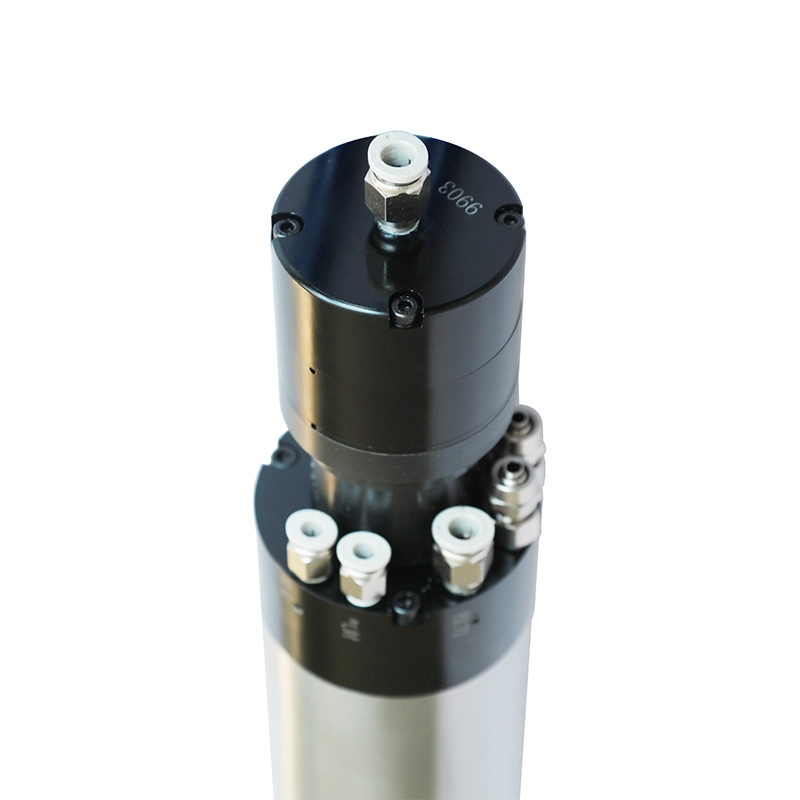

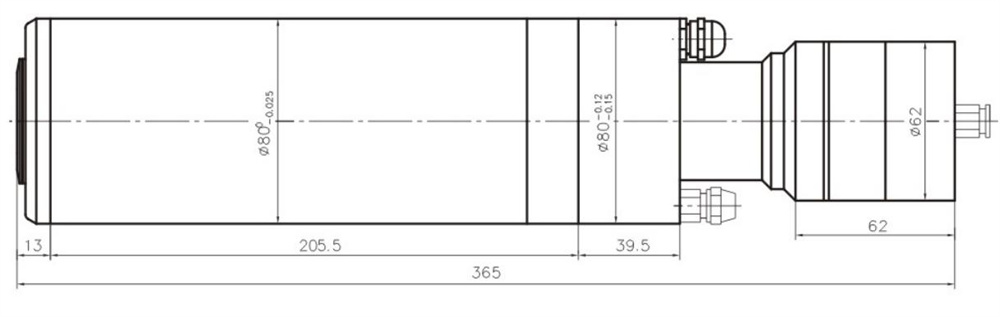

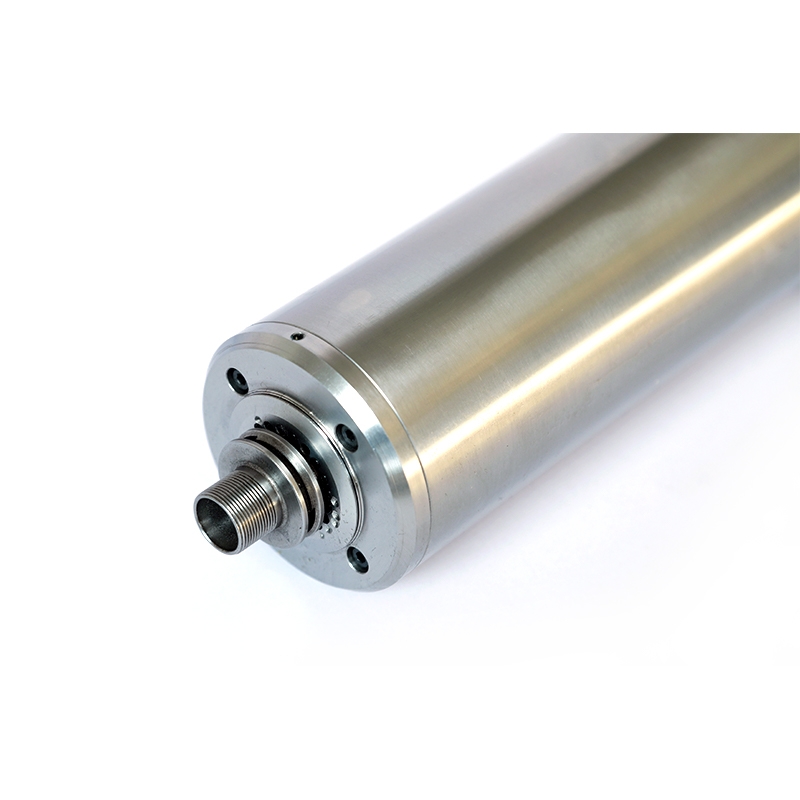

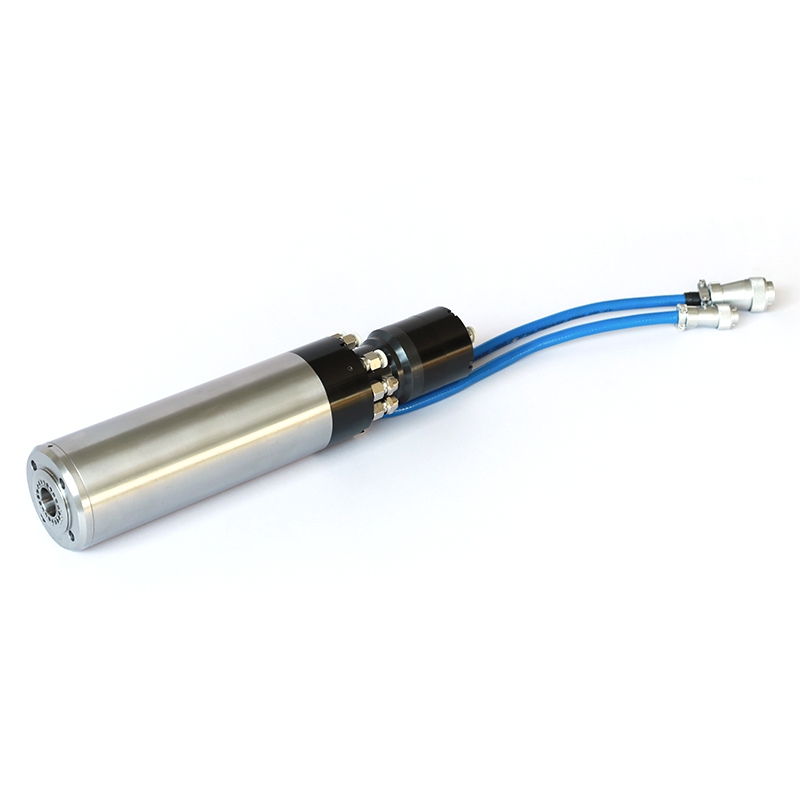

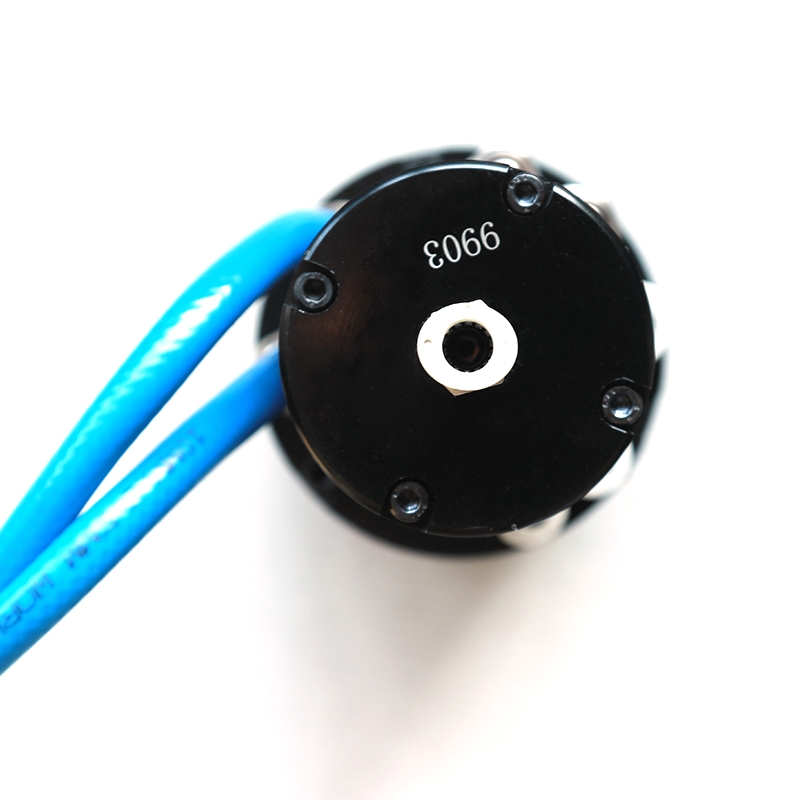

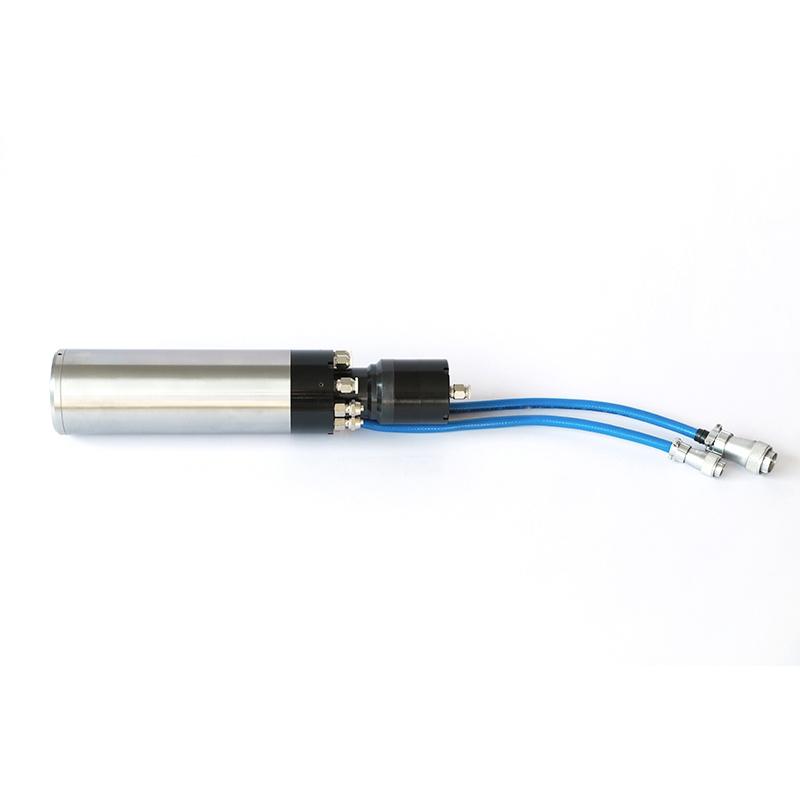

ZHD80 2.2KW/4KW ISO20 ATC 40000rpm water cooling high speed electric motorized spindle
| Model |
ZHD80-2.2 |
Model |
ZHD80-4.0 |
| Rated power(Kw) |
2.2 |
Rated power(Kw) |
4.0 |
| Rated current(A) |
8.9/5.2 |
Rated current(A) |
15.2/8.8 |
| Rated voltage(V) |
220/380 |
Rated voltage(V) |
220/380 |
| Rated frequency(Hz |
750 |
Rated frequency(Hz |
1333 |
| Rated torque(Nm) |
0.95 |
Rated torque(Nm) |
0.95 |
| Maximum frequency(Hz) |
1333 |
Maximum frequency(Hz) |
1333 |
| Maximum rpm(rpm) |
40000 |
Maximum rpm(rpm) |
40000 |
| Pole No. |
4 |
Pole No. |
4 |
| Encoder |
Optional |
Encoder |
Optional |
| Tool change |
Automatic |
Tool change |
Automatic |
| Nose |
ISO20 |
Nose |
ISO20 |
| Inner bore(mm) |
25 |
Inner bore(mm) |
25 |
| Bearing layout |
Front 2 rear 2 |
Bearing layout |
Front 2 rear 2 |
| Studs |
ISO20-15° |
Studs |
ISO20-15° |
| Lubrication |
Grease |
Lubrication |
Grease |
| How to cool |
Internal cool with oil or water |
How to cool |
Internal cool with oil or water |
| Weight(Kg) |
9 |
Weight(Kg) |
9 |
