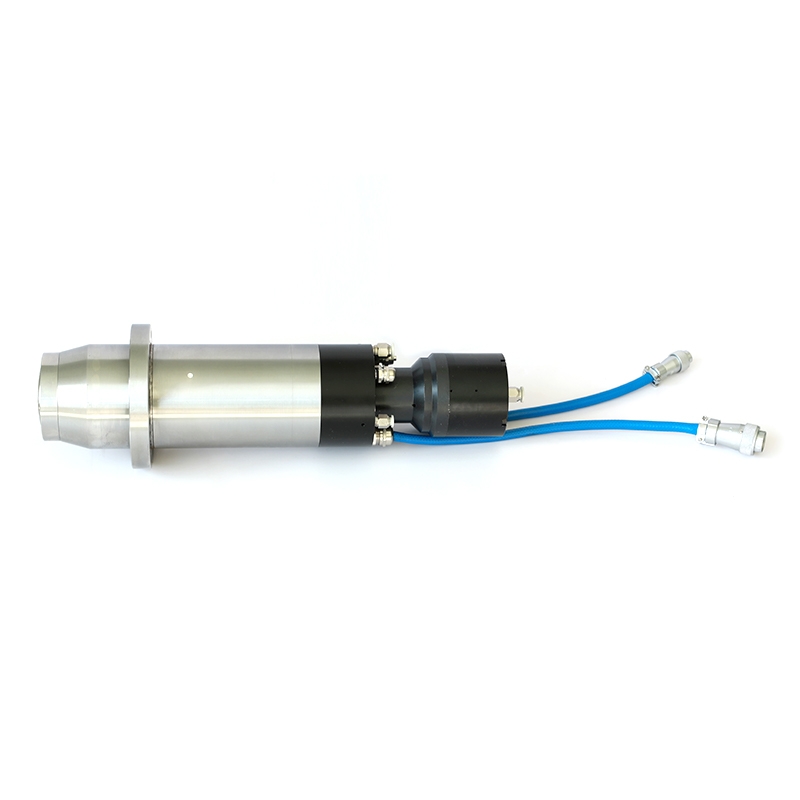

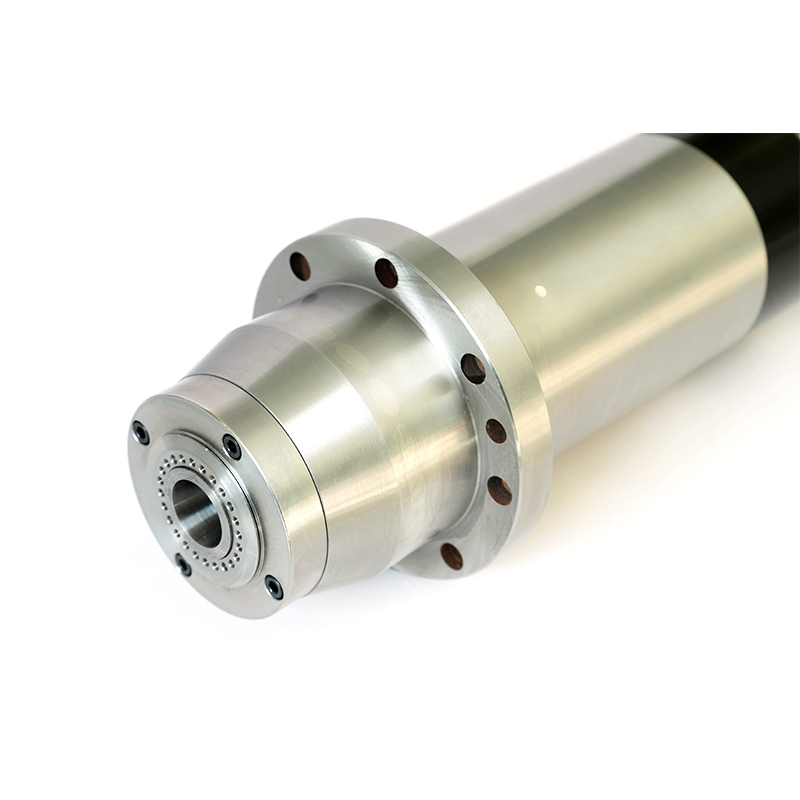

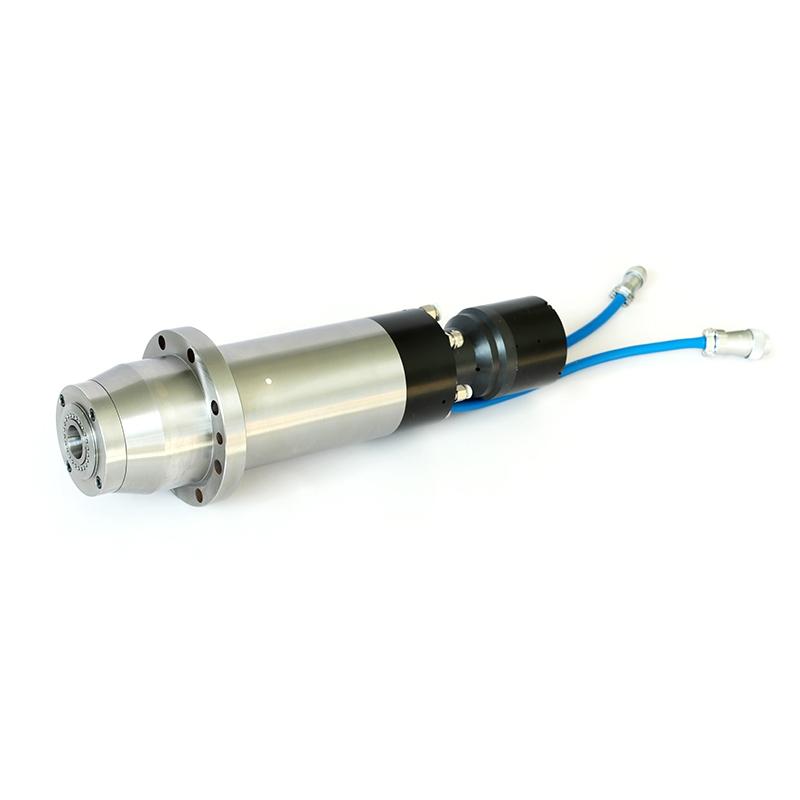

ZHD100 ISO25 ATC 36000rpm water cooling electric spindle

    ZHD100 3.5KW/6KW ISO25 ATC 36000rpm water cooling high speed electric motorized spindle
    Model ZHD100-3.5 Model ZHD100-6.0
    Rated power(Kw) 3.5 Rated power(Kw) 6.0
    Rated current(A) 7.8 Rated current(A) 12.8
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz 450 Rated frequency(Hz 800
    Rated torque(Nm) 2.4 Rated torque(Nm) 2.4
    Maximum frequency(Hz) 1200 Maximum frequency(Hz) 1200
    Maximum rpm(rpm) 36000 Maximum rpm(rpm) 36000
    Pole No. 4 Pole No. 4
    Encoder Optional Encoder Optional
    Tool change Automatic Tool change Automatic
    Nose ISO25/HSK32 Nose ISO25/HSK32
    Inner bore(mm) 25 Inner bore(mm) 25
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Studs ISO25-15° Studs ISO25-15°
    Lubrication Grease Lubrication Grease
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 17 Weight(Kg) 17
