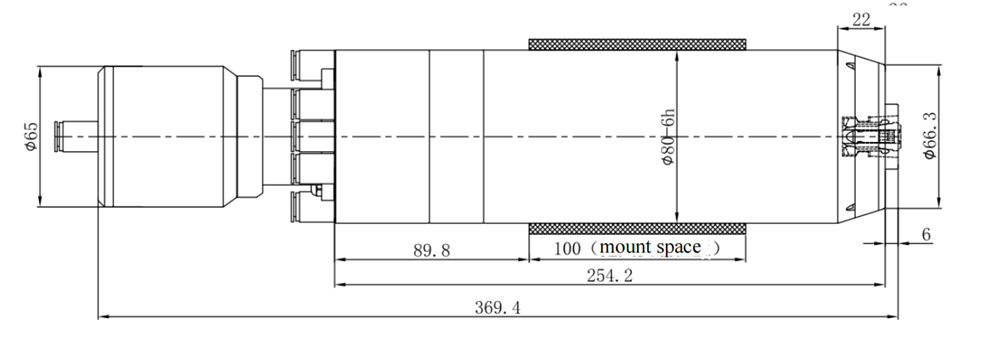

ZHD80-4KW-HSK25E ATC water cooling electric spindle

    80mm 4KW HSK25E 40000RPM ATC Water Cooling High Speed Electric Spindle Motor
    80MM spindle motor
    HSK25E spindle
    40000rpm spindle motor
    ATC water cooling spindle
    Spindle model ZHD80-4KW-HSK25E
    Rated power 4.0KW
    Rated voltage 220/380V
    Rated frequency 1000HZ
    Maximum frequency 1333HZ
    Rated rpm 30000rpm
    Maximum rpm 40000rpm
    Pole No. 4
    Encoder Optional
    Type of tool change Automatic tool change
    Nose interface HSK25E
    Bearing distribution Front 2 back 2
    Lubrication Grease
    Cooling Liquid cooling(water or oil)
    Weight 9KG
