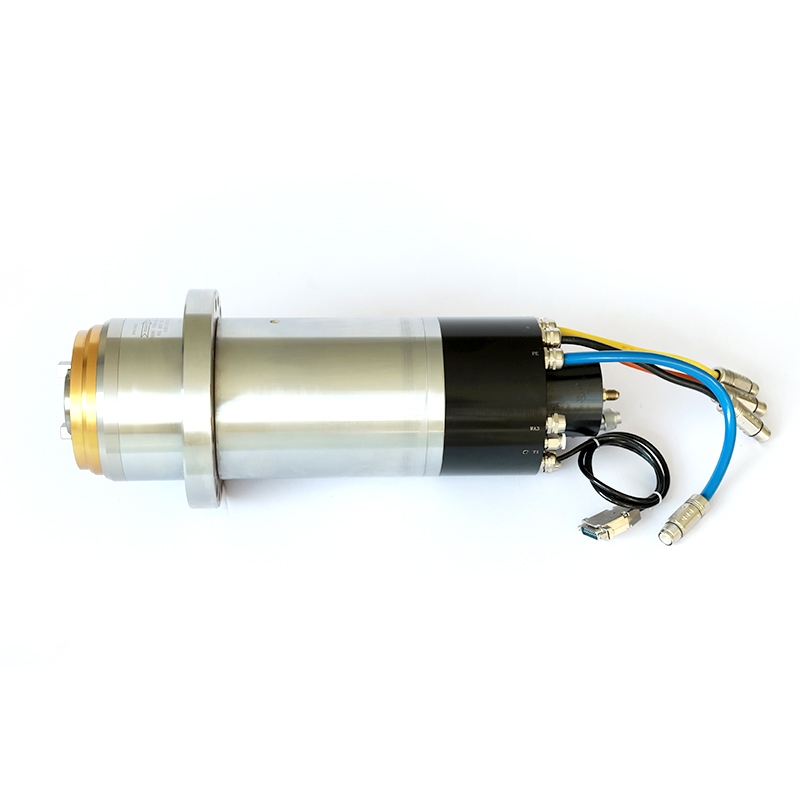

PMSM spindle has the advantage of high torque at both high and low rpm.
The rotor of the permanent magnet synchronous electric spindle has no induced current, and the rotor has low heat generation. It also has excellent hard torque characteristics, and still has high speed stability under load fluctuations, which can maintain the uniform rotation of the grinding wheel. Therefore, the surface quality of the processed parts is higher.
Therefore, it is widely used in CNC milling machines, CNC machining centers, robot arms and etc.
| Product name |

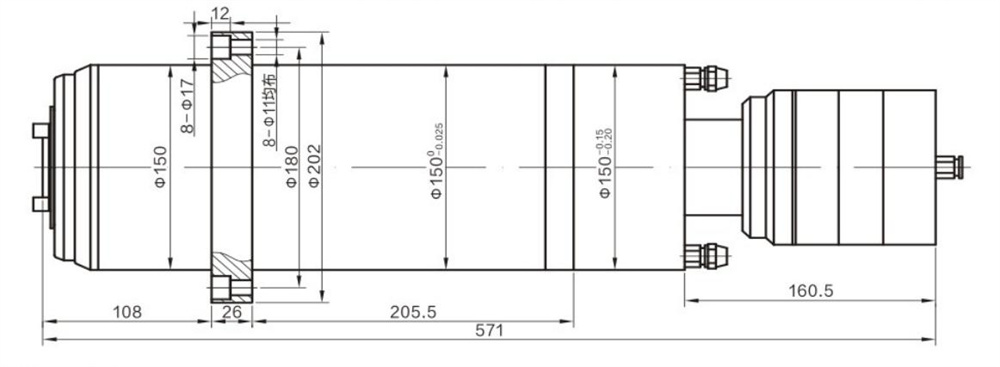

YTD150A-20.0KW |
Product name |
YTD150B-29.0KW |
| Rated power（KW) |
20.0 |
Rated power（KW) |
29.0 |
| Rated current(A) |
50.0 |
Rated current(A) |
59.3 |
| Stall current（A) |
51.0 |
Stall current（A) |
62.0 |
| Peak current（A) |
190.0 |
Peak current（A) |
188.0 |
| Rated voltage（V) |
290 |
Rated voltage（V) |
380 |
| Rated frequency（Hz） |
400 |
Rated frequency（Hz） |
400 |
| Maximum frequenc（Hz） |
900 |
Maximum frequenc（Hz） |
900 |
| Rated torque（Nm） |
24.0 |
Rated torque（Nm） |
35.0 |
| Stall torque（Nm） |
24.5 |
Stall torque（Nm） |
37.0 |
| Peak torque（Nm） |
76.0 |
Peak torque（Nm） |
99.0 |
| Rated rpm（rpm) |
8000 |
Rated rpm（rpm) |
8000 |
| Maximum rpm（rpm） |
18000 |
Maximum rpm（rpm） |
18000 |
| Pole No. |
6 |
Pole No. |
6 |
| Winding resistance(Ω） |
0.22 |
Winding resistance(Ω） |
0.20 |
| Winding induction（mH) |
0.98 |
Winding induction（mH) |
1.09 |
| Torque constant（Nm/A) |
0.48 |
Torque constant（Nm/A) |
0.60 |
| Voltage constant（V/Krpm） |
28.0 |
Voltage constant（V/Krpm） |
33.5 |
| Encoder |
Yes |
Encoder |
Yes |
| Tool change |
Automatic |
Tool change |
Automatic |
| Nose type |
HSK63/BT40 |
Nose type |
HSK63/BT40 |
| Bearing layout |
Front 2 rear 2 |
Bearing layout |
Front 2 rear 2 |
| Studs |
BT40-45° |
Studs |
BT40-45° |
| Lubrication |
Grease |
Lubrication |
Grease |
| How to cool |
Internal cool with |
How to cool |
Internal cool with |
| Weight |
52 |
Weight |
58 |
