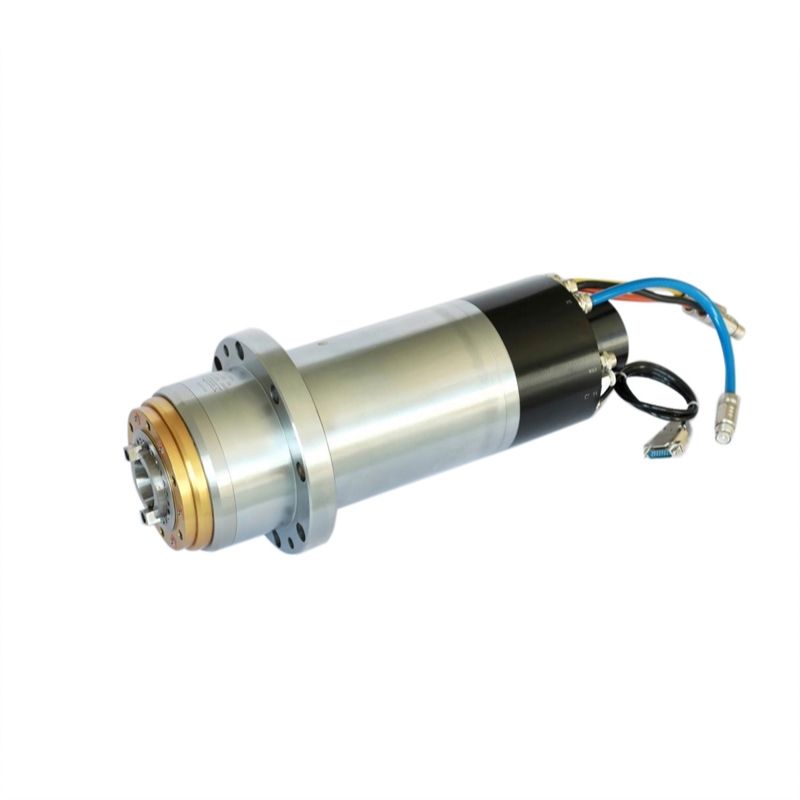

YTD170 36KW Series Permanent Magnet Synchronous Automatic Tool Change HSK63A Spindle
| Product name |
YTD170-36.0KW |
| Rated power（KW) |
36.0 |
| Rated current(A) |
81.6 |
| Stall current（A) |
86.1 |
| Peak current（A) |
228.0 |
| Rated voltage（V) |
380 |
| Rated frequency（Hz） |
350 |
| Maximum frequenc（Hz） |
900 |
| Rated torque（Nm） |
49.3 |
| Stall torque（Nm） |
52.5 |
| Peak torque（Nm） |
124.0 |
| Rated rpm（rpm) |
7000 |
| Maximum rpm（rpm） |
18000 |
| Pole No. |
6 |
| Winding resistance(Ω） |
0.09 |
| Winding induction（mH) |
0.62 |
| Torque constant（Nm/A) |
0.66 |
| Voltage constant（V/Krpm） |
36.9 |
| Encoder |
Yes |
| Tool change |
Automatic |
| Nose type |
HSK63/BT40 |
| Bearing layout |
Front 2 rear 2 |
| Studs |
BT40-45° |
| Lubrication |
Grease |
| How to cool |
Internal cool with oil or |
| Weight |
80 |
