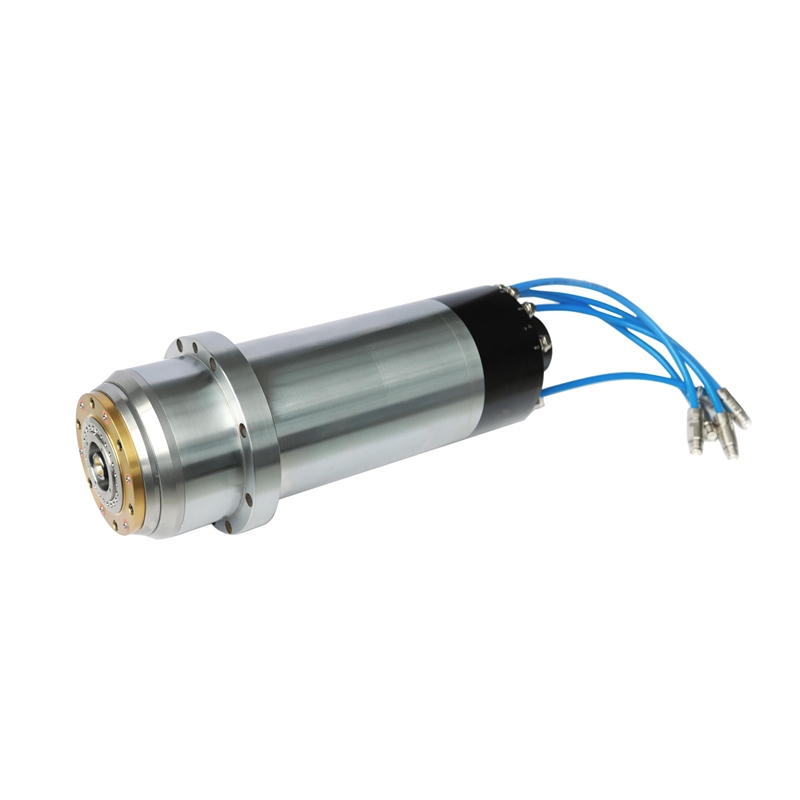

ZHD190 BT40 ATC water cooling electric spindle

    ZHD190 28KW 43KW BT40 ATC 16000RPM pole six water cooling electric spindle
    Model ZHD190-28.0 Model ZHD190-43.0
    Rated power(Kw) 28.0 Rated power(Kw) 43.0
    Rated current(A) 62.5 Rated current(A) 93.5
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz) 140 Rated frequency(Hz) 215
    Rated torque(Nm) 95.5 Rated torque(Nm) 95.5
    Maximum frequency(Hz) 800 Maximum frequency(Hz) 800
    Maximum rpm(rpm) 16000 Maximum rpm(rpm) 16000
    Pole No. 6 Pole No. 6
    Encoder Optional Encoder Optional
    Tool change Automatic Tool change Automatic
    Nose BT40/HSK63 Nose BT40/HSK63
    Inner bore(mm) 80 Inner bore(mm) 80
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Studs BT40-45° Studs BT40-45°
    Lubrication associated gas Lubrication associated gas
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 105 Weight(Kg) 105
