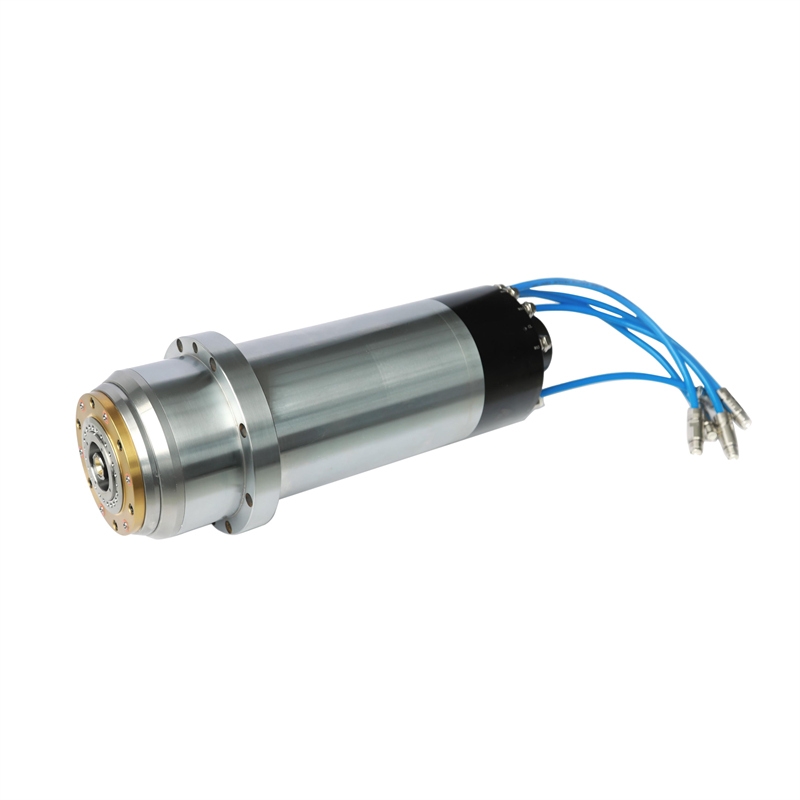

ZHD170 ISO40 ATC 18000rpm water cooling electric spindle

    ZHD170 18.5KW 22KW ISO40 18000rpm ATC water cooling pole six high speed electric spindle
    Model ZHD170-18.5 Model ZHD170-22.0
    Rated power(Kw) 18.5 Rated power(Kw) 22.0
    Rated current(A) 38.6 Rated current(A) 44.8
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz) 225 Rated frequency(Hz) 275
    Rated torque(Nm) 39.3 Rated torque(Nm) 38.2
    Maximum frequency(Hz) 900 Maximum frequency(Hz) 900
    Maximum rpm(rpm) 18000 Maximum rpm(rpm) 18000
    Pole No. 6 Pole No. 6
    Encoder Optional Encoder Optional
    Tool change Automatic Tool change Automatic
    Nose BT40/HSK63 Nose BT40/HSK63
    Inner bore(mm) 70 Inner bore(mm) 65
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Studs BT40-45° Studs BT40-45°
    Lubrication Grease Lubrication Grease
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 80 Weight(Kg) 80
