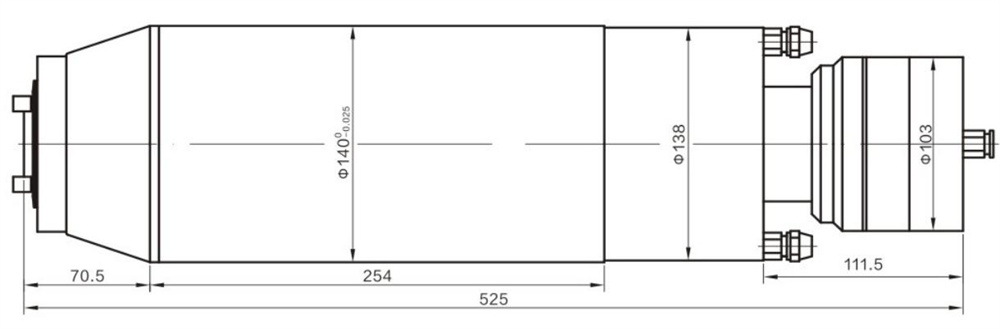

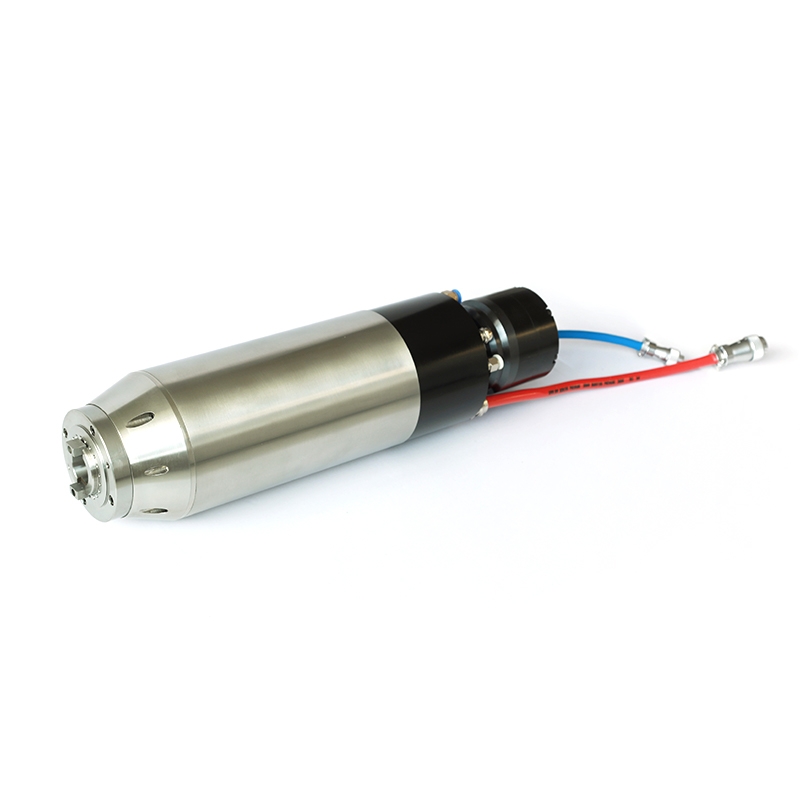

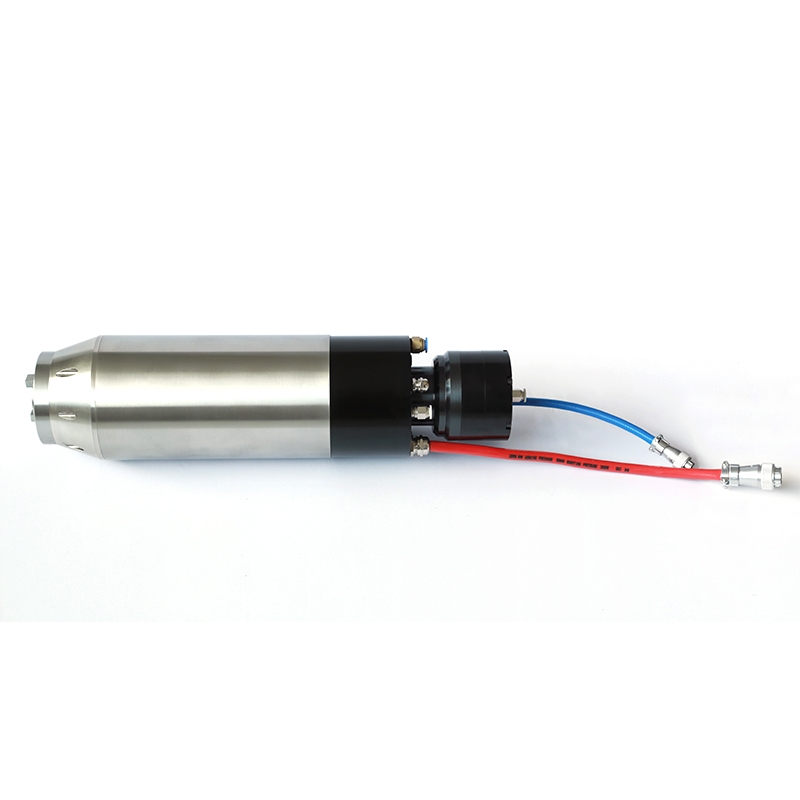

ZHD140 ISO30 ATC 18000rpm water cooling electric spindle

    ZHD140 5.5KW 8KW ISO30 ATC 18000rpm water cooling pole six high speed electric spindle
    Model ZHD140-5.5 Model ZHD140-8.0
    Rated power(Kw) 5.5 Rated power(Kw) 8.0
    Rated current(A) 12.8 Rated current(A) 18.4
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz 250 Rated frequency(Hz 350
    Rated torque(Nm) 10.5 Rated torque(Nm) 11.0
    Maximum frequency(Hz) 900 Maximum frequency(Hz) 900
    Maximum rpm(rpm) 18000 Maximum rpm(rpm) 18000
    Pole No. 6 Pole No. 6
    Encoder Optional Encoder Optional
    Tool change Automatic Tool change Automatic

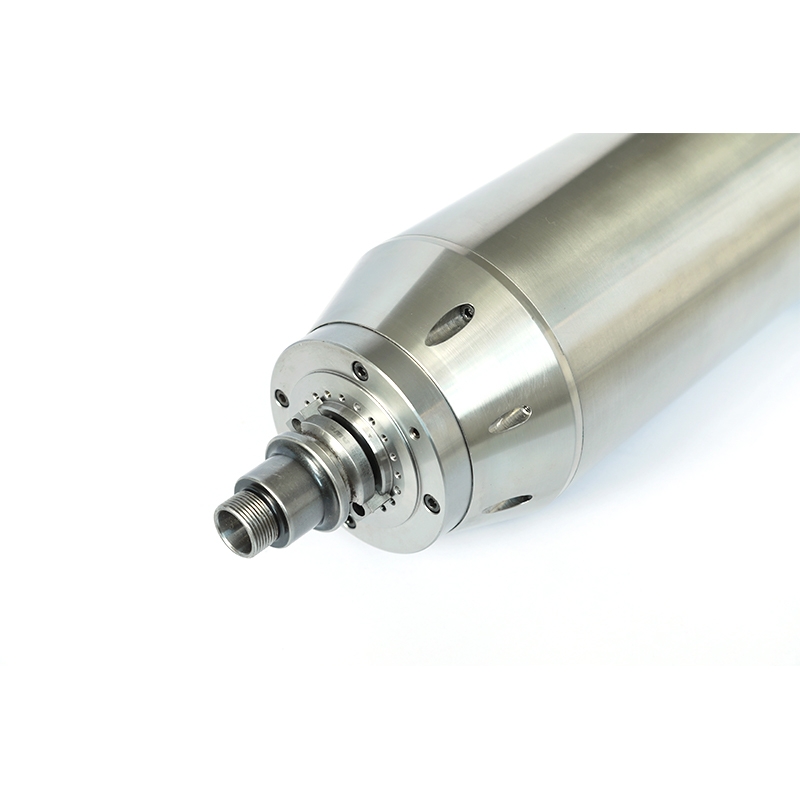

    Nose BT30/ISO30 Nose BT30
    Inner bore(mm) 50 Inner bore(mm) 50
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Studs BT30-45° Studs BT30-45°
    Lubrication Grease Lubrication Grease
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 37 Weight(Kg) 37
