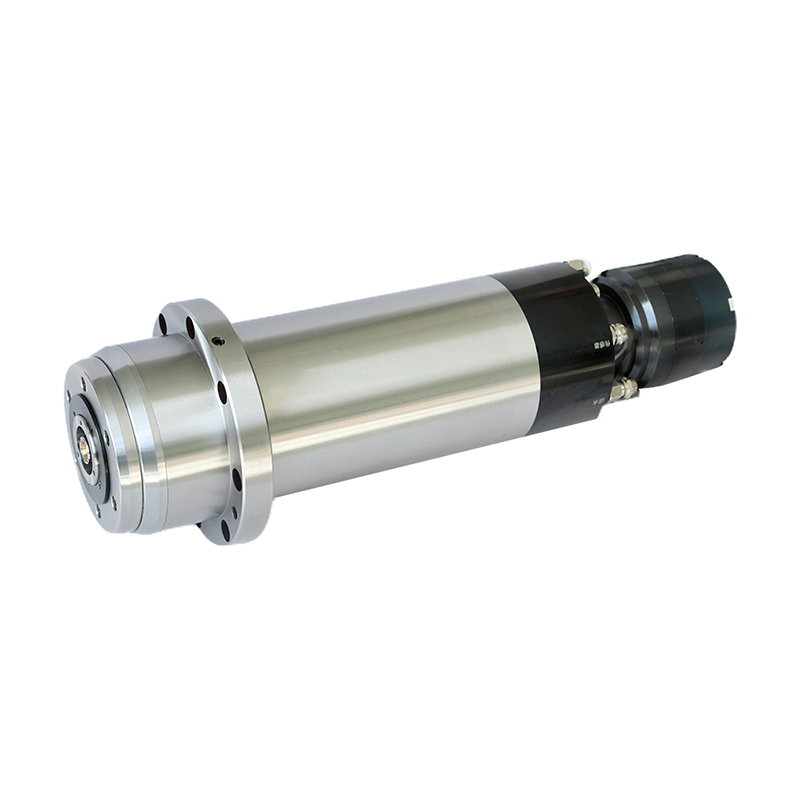

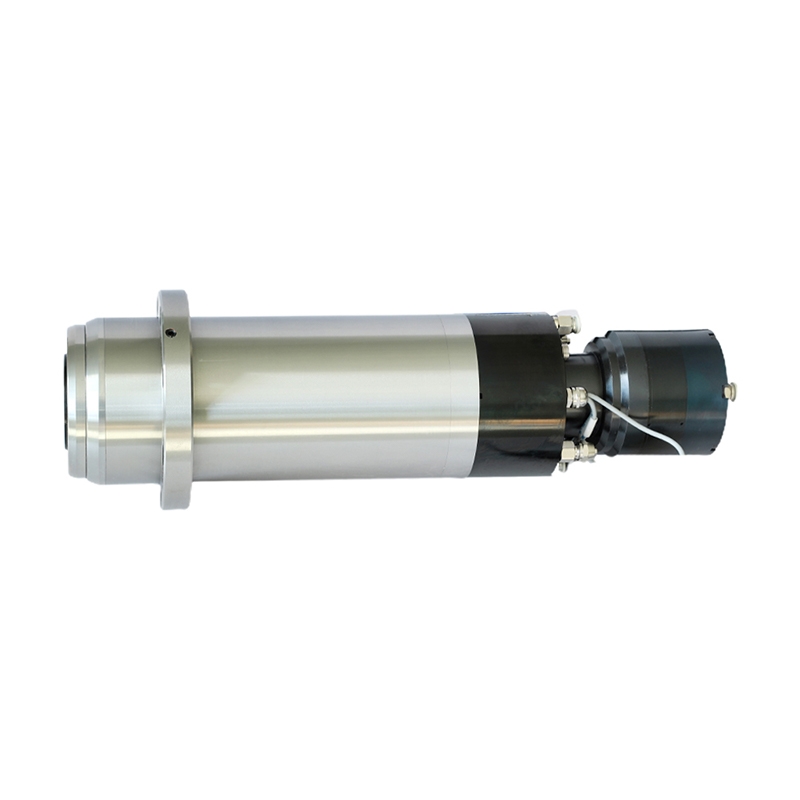

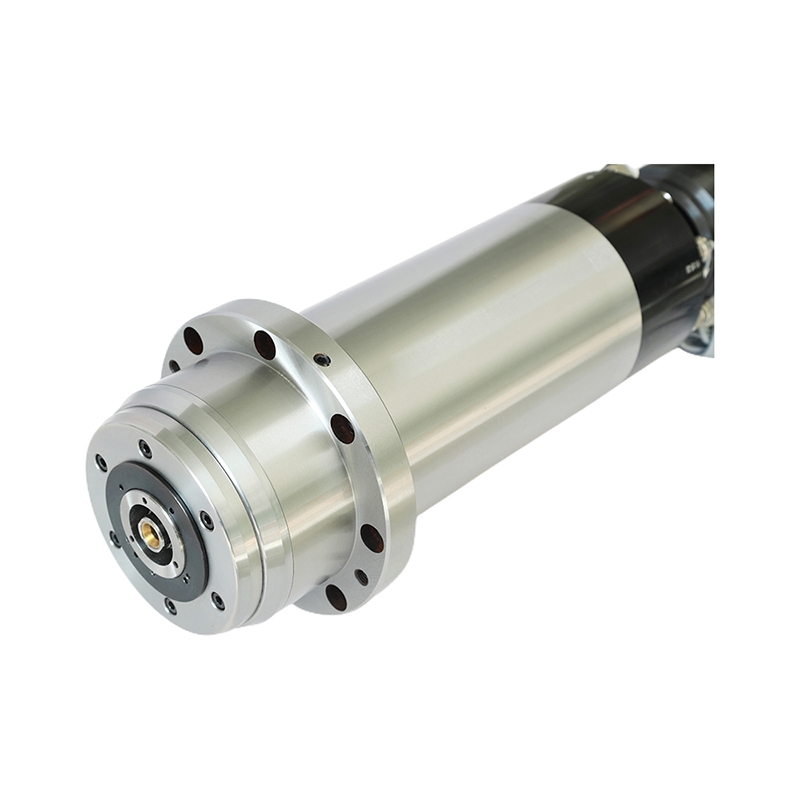

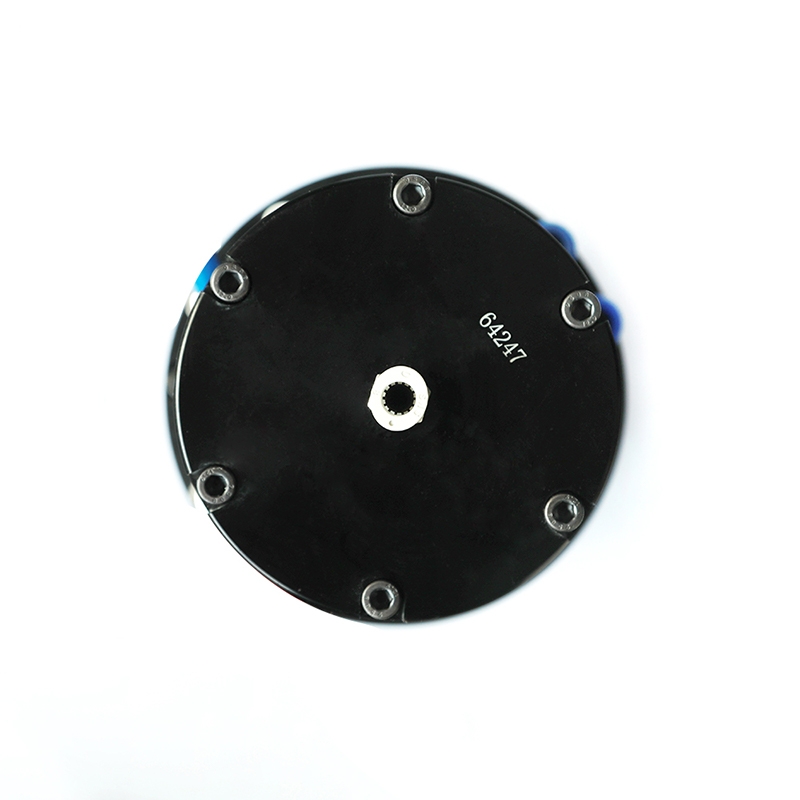

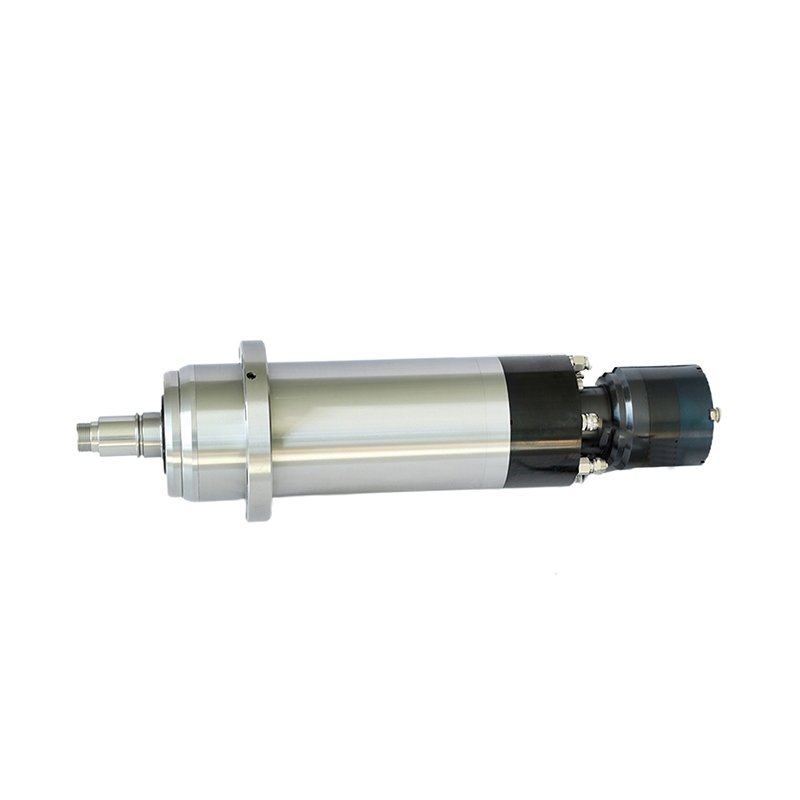

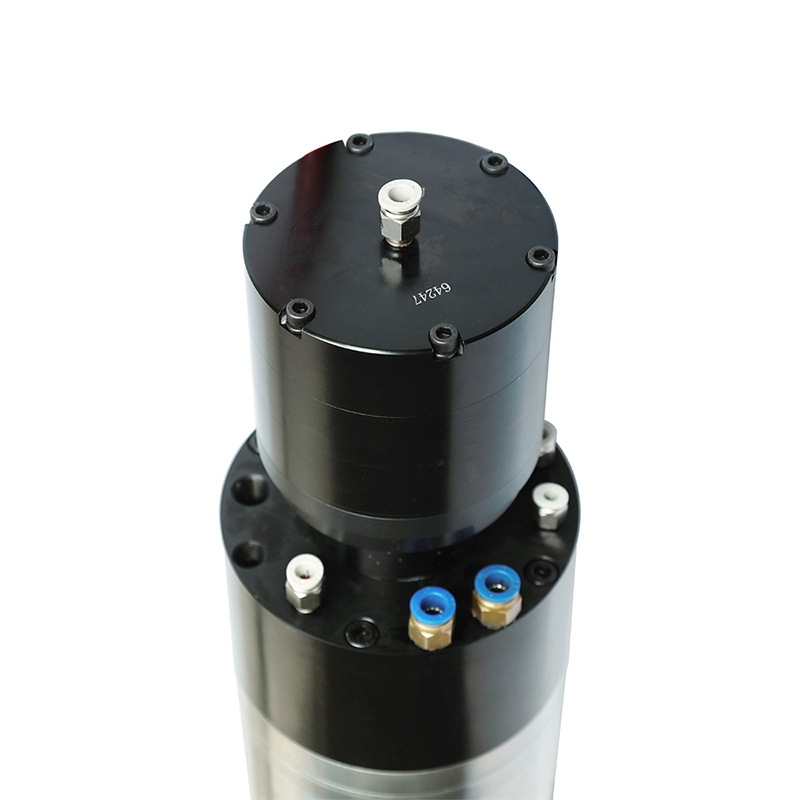

ZHD150B BT40 BBT40 ATC water cooling electric spindle

    ZHD150B 8KW 11KW BT40 BBT40 ATC water cooling electric 18000rpm spindle motor
    Model ZHD150B-8.0 Model ZHD150B-11.0
    Rated power(Kw) 8.0 Rated power(Kw) 11.0
    Rated current(A) 17.2 Rated current(A) 24.5
    Rated voltage(V) 380 Rated voltage(V) 380
    Rated frequency(Hz 300 Rated frequency(Hz 350
    Rated torque(Nm) 12.7 Rated torque(Nm) 15
    Maximum frequency(Hz) 900 Maximum frequency(Hz) 900
    Maximum rpm(rpm) 18000 Maximum rpm(rpm) 18000
    Pole No. 6 Pole No. 6
    Encoder Optional Encoder Optional
    Tool change Automatic Tool change Automatic
    Nose BT40/HSK63 Nose BT40/HSK63
    Inner bore(mm) 65 Inner bore(mm) 65
    Bearing layout Front 2 rear 2 Bearing layout Front 2 rear 2
    Studs ISO40-45° Studs ISO40-45°
    Lubrication Grease Lubrication Grease
    How to cool Internal cool with oil or water How to cool Internal cool with oil or water
    Weight(Kg) 52 Weight(Kg) 52
